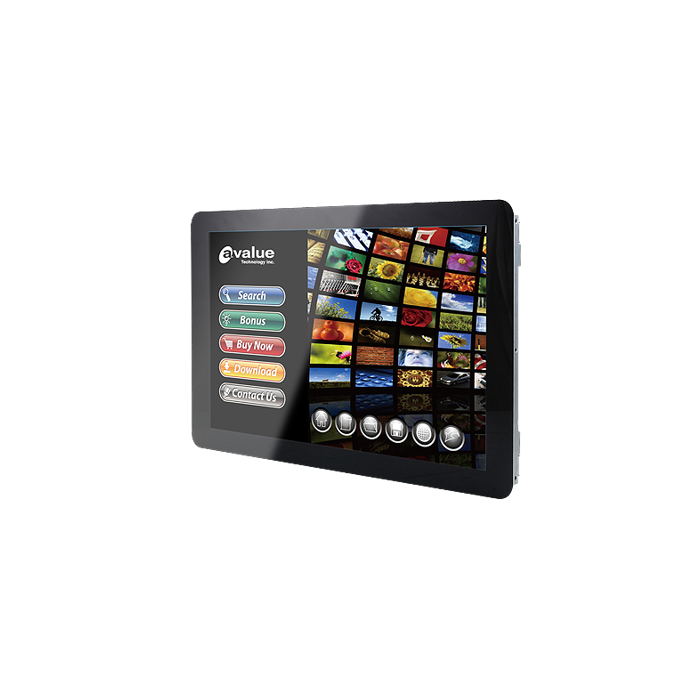

OFT-10W03 10.1" Z8350 Open Frame Panel PC

Be the first to review this product

A$0.00

In stock

SKU

OFT-10W03

10.1" Open Frame Tablet

Details

10.1" Open Frame Tablet

· Intel® Atom™ x5-Z8300 / Z8350 Processor: 1.44GHz

· 2GB RAM

· 32GB eMMC

· PCAP Touch

· 10/100/1000 Ethernet (PXE Boot)

· Touch board interface (Power/ Brightness/ Volume/ LED)

· 16Bit programmable GPIO

· RS232(TX/RX) or RS485

· Typical DC 19V Input, Optional 12V & 24V support

· Optional Powered LAN 802.3AT (10" only)

More Information

Brand

Avalue Technology Inc

Specifications

System
Processor	Intel® Atom™ x5-Z8300/Z8350 Processor: 1.44GHz
System Memory	2 or 4GB DDR3L RAM
Other	802.11 b/g/n/ac WiFi, BT5.0

Storage
Storage	32 or 64GB eMMC

Panel
LCD Size	10.1"
Resolution	1280x800
Luminance	350
Viewing angle	170° (H/V)
Touch Type	PCAP

I/O

External I/O Connector

1 x USB 2.0, 1 x USB3.0
1 x micro USB Client
1 x 10/100/1000 Ethernet
1 x HDMI
1 x Head phone jack
1 x Micro SD slot
1 x DC jack

Internal I/O Connector

4 x RS232, 1 x RS485
1 x 16 bit GPIO interface
1 x USB interface
1 x eDP & Dual channel 24bit LVDS
1 x backlight control & power
2 x speaker interface (1.2W stereo)
1 x A-MIC interface
1 x Touch Button connector
1 x DC input 4pin header
1 x I2C interface

1 x M.2 for LTE / SIM slot

Display
Multiple Display	Windows support extended mode

Mechanical & Environmental
Power Requirement	DC input 12 ~ 24V
Power Type	DC Jack, DC input 4pin header, optional Powered LAN 802.3AT
Operating Temperature	0°C ~ 40°C
Storage Temperature	-10°C ~ 60°C0
Operating Humidity	0% ~ 90% Relative Humidity, Non-condensing
Weight	1.18kg
Dimension (L x W x H)	252 x 166 x 38 mm
