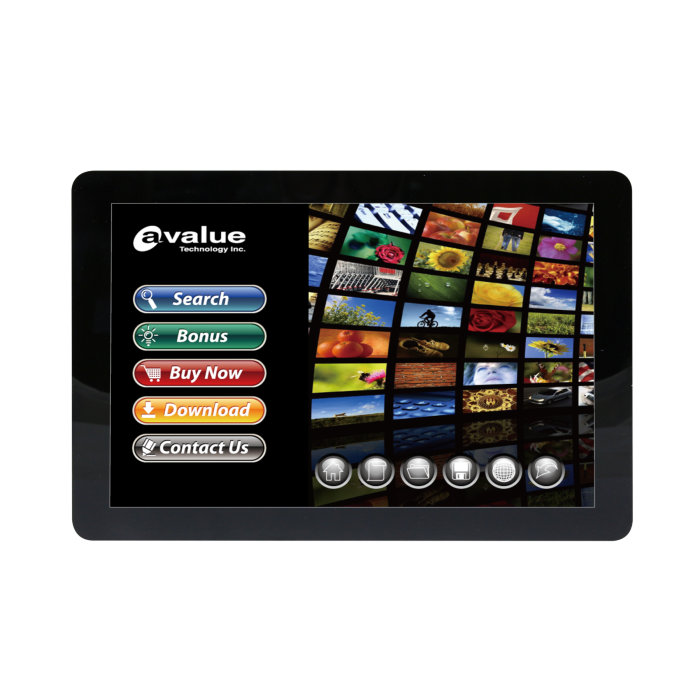

OFT-10WAD 10.1" Open Frame Panel PC

Be the first to review this product

A$0.00

In stock

SKU

OFT-10WAD

10.1" Open Frame Panel PC with Intel IOTG Alder Lake-N Processor 6W N50

Key Features:

Intel® IOTG Alder Lake-N Processor 6W N50
8GB LPDDR5 on board
64GB eMMC
PCAP
CE, FCC CLASS A

Details

The OFT-10WAD by Avalue is a 10.1" open frame panel PC designed for industrial applications. It features an Intel® IOTG Alder Lake-N Processor 6W N50, 8GB LPDDR5 memory, and 64GB eMMC storage. The display offers a resolution of 1280 x 800, 350 cd/m² brightness, and a wide 175° viewing angle. It supports multi-touch with up to 10 points and has various I/O options, including HDMI, USB 3.0, and RJ45 LAN. It is compatible with Windows 10 IoT, Windows 11 IoT, and Ubuntu 22.04.

More Information

More Information
brand	Avalue Technology Inc
Specifications	System Information Processor Intel® IOTG Alder Lake-N Processor 6W N50 System Memory 8GB LPDDR5 on board Storage Storage 64GB eMMC Software Support OS Windows 10 IoT, Windows 11 IoT (w/ TPM) Linux Ubuntu 22.04 Certification Certification Information CE, FCC Class A Panel LCD Size 10.1’’ Resolution 1280 x 800 Luminance 350 cd/m2 Viewing angle 175 (H) , 175 (V) Touch Type PCAP Multi-touch up to 10 Points External I/O External I/O Connector 1 x 10/100/1000 RJ45 LAN 1 x Audio Jack TRS 1 x DC Jack 1 x HDMI 2.0 Out 1 x H/W power button 2 x USB 3.0 Type A Internal I/O Internal I/O Connector 1 x A-MIC 2 x GPIO 1 x I2C 1 x M.2 2230 E-Key 1 x Micro SD Slot 1 x MIPI DSI 1 x RS-232/RS-485 1 x RTC Battery 1 x Speaker 2 x Touch Button 1 x USB 2.0 2 x USB 2.0 + DMIC Wireless Communication WLAN M.2 2230 E key socket DC In / Out Characteristics Power Type AT Mechanical & Environmental Operating Temp. 0°C ~ 40°C (32°F ~ 104°F) Storage Temp. -20°C ~ 60°C (-4°F ~ 140°F) Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing Dimension 252 x 165.8 x 30.6 mm
Description	The OFT-10WAD by Avalue is a 10.1" open frame panel PC designed for industrial applications. It features an Intel® IOTG Alder Lake-N Processor 6W N50, 8GB LPDDR5 memory, and 64GB eMMC storage. The display offers a resolution of 1280 x 800, 350 cd/m² brightness, and a wide 175° viewing angle. It supports multi-touch with up to 10 points and has various I/O options, including HDMI, USB 3.0, and RJ45 LAN. It is compatible with Windows 10 IoT, Windows 11 IoT, and Ubuntu 22.04.
