1 x Power Jack 1 x HDMI Port 2 x USB Type A Host 1 x RJ45 1 x Headphone Jack 1 x Micro SD slot 1 x Reset
Internal I/O Connector
1 x Micro USB 1 x USB interface , 1 x DMIC interface 1 x USB touch interface 1 x M.2 B-Key(3042) 1 x touch button control(power/vol/brightness) 1 x Power interface (12~24V) 1 x Li-Battery connector 1 x JLVDS1 1 x JMIPI 1 x AMIC interface 1 x Speaker interface 1 x JSEN1 interface (I2C x2) 1 x JITP1 interface 1 x Debug port 1 x RS232 interface 1 x RS232 , RS485 1 x JGPIO1 (GPIO 16bit) 1 x RTC Battery interface 1 x Micro SIM Card socket for LTE module
Display
Multiple Display
LVDS+HDMI
Mechanical & Environmental
Power Requirement
DC 12~24V Input
Power Type
DC Jack, DC input 4pin header (Optional Powered LAN 802.3AT)
Operating Temperature
0°C ~ 40°C
Storage Temperature
-10°C ~ 60°C0
Operating Humidity
0% ~ 90% Relative Humidity, Non-condensing
Weight
1.18kg
Dimension (L x W x H)
252 x 166 x 38mm
Certifications
Certification Information
CE, FCC Class A
Software Support
OS Information
Android 8.1 / Debian 9
Wireless Communication
WLAN
802.11 b/g/n
Bluetooth
4.0
Description

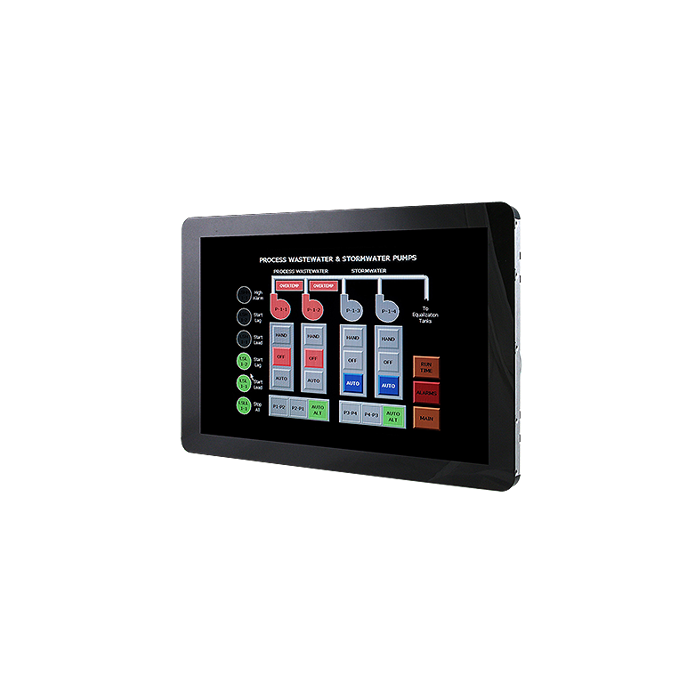

10.1" Open Frame Tablet with RK3288
·RockChip RK3288W Cortex-A17 Quad Core 1.6GHz
·2GB or 4G RAM
·16GB or 32GB eMMC
·PCAP Touch
·10/100/1000 Ethernet
·M.2 B-Key(3042) connector socket
·802.11 b/g/n Wireless LAN and Bluetooth 4.0
·DC 12~24V Input
·Optional Powered LAN 802.3AT
·Optional 1000 nits / PCAP Touch with 3mm CG
·OS Image support Android 8.1 / Debian 9
·Battery Charger
·Note : You need a 19v or a 24v power adapter to fully charge the battery. You cannot fully charge the battery with a 12v power adapter.
