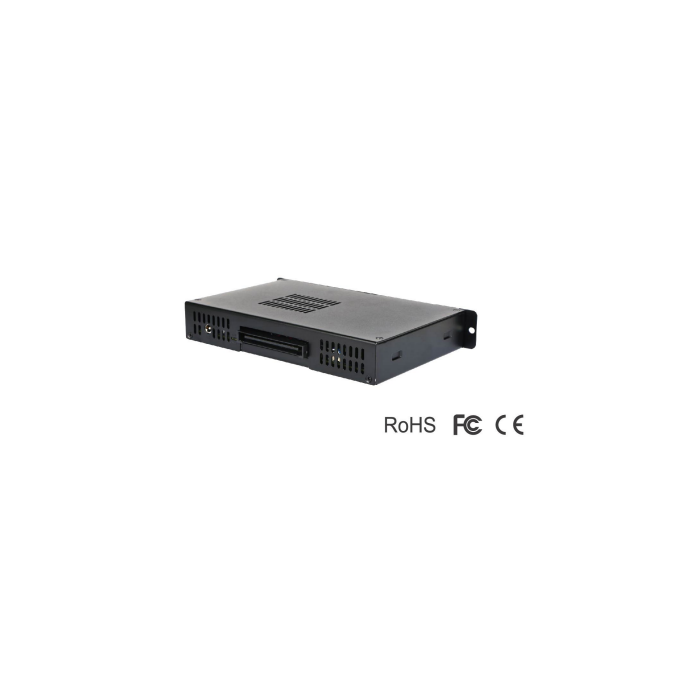

PC67 i7 Compact OPS Player

A$0.00

In stock

SKU

PC67

REPLACED BY PC68

This product is now end of life. There may still be stock available; get in touch with us for more details or suggestions for appropriate replacements.

Details

Compact OPS player, Intel Celeron 3865U, Intel i3-7100U, Intel i5-7200U, Intel i7-7500U

· Intel 7^th Generation Core Processor

· 2 x SO-DIMM DDR4, up to 32GB

· 1 x JAE (DP/HDMI), 1 x HDMI, Supporting 4K Display

· 1 x 2.5” SATA, 1 x mSATA, 1 x M.2

· 2 x USB3.0, 2 x USB2.0, 1 xRS232

· 1 x RJ45, 1 x M.2 (2230) for WiFi/BT

· Supports Intel vPro Technology (optional)

More Information

brand

Giada Technology Inc.

Specifications

PC67		PC67-N1-3865U40H0G-GIA / PC67-N1-7100U40H0G-GIA / PC67-N1-7200U40H0G-GIA / PC67-N1-7300U40H0G-GIA/ PC67-N1-7500U40H0G-GIA
Processor	CPU	Intel^® Celeron 3865U / Intel^® Core i3-7100U / Intel^® Core i5-7200U / Intel^® Core i5-7300U/ Intel^® Core i7-7500U
	Frequency	1.80GHz / 2.40GHz / 2.50GHz (Up to 3.10GHz ) / 2.60GHz (Up to 3.50GHz ) / 2.70GHz (Up to 3.50GHz )
	BIOS	AMI Source Code
	Chipset	SOC
Memory	Type	DDR4-2133MHz
	Socket	2 x SO-DIMM
	Max Size	32GB
Graphics	GPU	Intel^® HD Graphics 610/620
	Graphic Engine	Direct3D 2015, OpenGL 4.5, OpenCL 2.1
	DP（80Pin JAE OPS）	1 x DP (Max.4096 x 2304@60Hz)
	HDMI（80Pin JAE OPS）	1 x HDMI (Max.3840 x 2160@30Hz)
	HDMI	1 x HDMI (Max.3840 x 2160@30Hz)(No sound))
Network	Controller	Realtek RTL8111H Gigabit Ethernet / Intel I219LM(Optional)
	Interface	1 x RJ45
I/O	USB	2 x USB 3.0, 2 x USB 2.0
	Serial Port	1 x RS232
	Audio	1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
	Mini-PCIe	1 x Full-size Mini-PCIe for mSATA
	M.2 1#	1 x M.2 (2230 ) for WiFi/BT
	M.2 2#	1 x M.2 (2242/2280) for SSD
Storage	SATA	1 x 2.5"SATA
	mSATA	1 x Full-size for mSATA
	M.2	1 x M.2 (2242/2280) for SSD
JAHC Tech	WatchDog Timer	0~255 Second Time Out Support
	Auto Power On	Power Activated Automatically Start
	RTC	Set Up Independently Every day, A Week as a Cycle
Operation System	Windows	Windows 10(64-bit)
	Linux	Supported
Power	Power Type	DC-IN
	Input Voltage	19V/3.42A
Mechanical	Dimensions (W × D × H)	200mm x 119mm x 30mm(7.87"x4.96"x1.18")
	Construction	Metal
	Color	Black
Environment	Operating Temperature	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
	Relative Humidity	95%@40℃ (non-condensing)
Certification	Certification	CE, FCC Class B, CCC

Description

Compact OPS player, Intel Celeron 3865U, Intel i3-7100U, Intel i5-7200U, Intel i7-7500U

· Intel 7^th Generation Core Processor

· 2 x SO-DIMM DDR4, up to 32GB

· 1 x JAE (DP/HDMI), 1 x HDMI, Supporting 4K Display

· 1 x 2.5” SATA, 1 x mSATA, 1 x M.2

· 2 x USB3.0, 2 x USB2.0, 1 xRS232

· 1 x RJ45, 1 x M.2 (2230) for WiFi/BT

· Supports Intel vPro Technology (optional)

Reviews

Write Your Own Review

Downloads

Data Sheet
