PhanTAM-116AP(H) 15.6" IP66 / IP69K Flat & Slim Design Stainless Steel Display
Aplex PhanTAM-116AP(H) 15.6" IP66 / IP69K Flat & Slim Design Stainless Steel Display
Key Features:
- 15.6" Fanless Stainless Steel Display
- IP66/69K Full Sealed with Anti-Corrosion Enclosure
- Ultra Slim Front Frame Design
- Special Hygienic Bolts on Rear Case
- M12 Connectors with Waterproof Cover
- DC 24V Power Input
PhanTAM-116AP
15.6" WXGA IP66/IP69K stainless steel display, VGA/HDMI input, OSD on the rear side, projected capacitive touch, 9~36V DC power input with Adapter
PhanTAM-116APH
15.6" WXGA IP66/IP69K stainless steel display, VGA/HDMI input, OSD on the rear side, projected capacitive touch, 9~36V DC power input with Adapter, 1,000 nits LCD

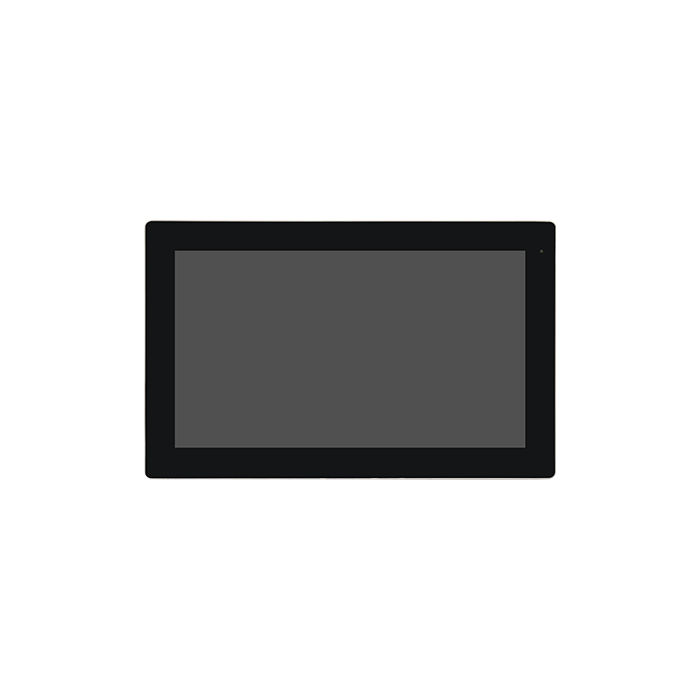

The Industrial Panel PC, Industrial Display Monitor, and Box PC, named PhanTAM-116AP(H), is a versatile and robust solution designed for industrial applications. It comes with a 15.6" TFT-LCD display with a resolution of 1366 x 768 or 1920 x 1080, offering a choice between 16.7M and 16.2M colors. The display can achieve high brightness, up to 450 cd/m2, with a wide viewing angle for better visibility. The touch screen is a Projected Capacitive Touch interface with a light transmission rate of 90%.
The system operates on a DC 24V power input, with a low power consumption of 12.1W (MAX) for PhanTAM-116AP. It features an operating temperature range of 0° - 50° with an optional extension to -20° - 60°. for the WT1 version. The display monitor is housed in a sturdy and corrosion-resistant 304 stainless steel chassis, with an optional 316 stainless steel chassis. The chassis has a total IP66/IP69K rating, providing excellent protection against dust and water.
The mechanical design of the PhanTAM-116AP(H) includes a slim and ultra-flat front frame, making it suitable for various mounting options such as VESA Mount 100 x 100 and Swing ARM (optional). The system comes with M12 connectors and waterproof covers for VGA, HDMI, USB, and DC power input, ensuring a secure and reliable connection even in harsh environments.
Key Features:
- 15.6" Fanless Stainless Steel Display
- IP66/69K Full Sealed with Anti-Corrosion Enclosure
- Ultra Slim Front Frame Design
- Special Hygienic Bolts on Rear Case
- M12 Connectors with Waterproof Cover
- DC 24V Power Input
| brand | Aplex Technology Inc. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description |
The Industrial Panel PC, Industrial Display Monitor, and Box PC, named PhanTAM-116AP(H), is a versatile and robust solution designed for industrial applications. It comes with a 15.6" TFT-LCD display with a resolution of 1366 x 768 or 1920 x 1080, offering a choice between 16.7M and 16.2M colors. The display can achieve high brightness, up to 450 cd/m2, with a wide viewing angle for better visibility. The touch screen is a Projected Capacitive Touch interface with a light transmission rate of 90%. The system operates on a DC 24V power input, with a low power consumption of 12.1W (MAX) for PhanTAM-116AP. It features an operating temperature range of 0° - 50° with an optional extension to -20° - 60°. for the WT1 version. The display monitor is housed in a sturdy and corrosion-resistant 304 stainless steel chassis, with an optional 316 stainless steel chassis. The chassis has a total IP66/IP69K rating, providing excellent protection against dust and water. The mechanical design of the PhanTAM-116AP(H) includes a slim and ultra-flat front frame, making it suitable for various mounting options such as VESA Mount 100 x 100 and Swing ARM (optional). The system comes with M12 connectors and waterproof covers for VGA, HDMI, USB, and DC power input, ensuring a secure and reliable connection even in harsh environments. Key Features:
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
