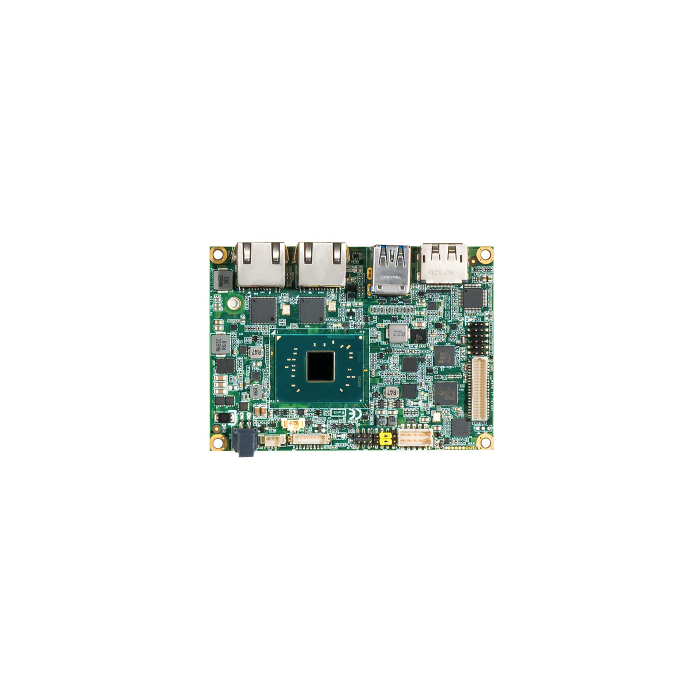

PICO318 Pico-ITX SBC Pentium/Celeron, DisplayPort++, LVDS, 2 GbE LAN
Pico-ITX SBC with Intel® Pentium® Processor N4200/Celeron® Processor N3350 and J3455, DisplayPort, LVDS, 2 GbE LAN and Audio
Intel® Pentium® processor N4200/Celeron® processor N3350 and J3455
1 DDR3L SO-DIMM for up to 8GB of memory
2 GbE LAN
1 PCI Express Mini Card slot with mSATA supported
M.2 Key B
More Information
| Brand |
Axiomtek |
| Specifications |
| CPU |
- Intel® Pentium® processor N4200 & Celeron® processor N3350 and J3455 onboard
|
| Chipset |
|
| System Memory |
- 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
|
| BIOS |
|
| COM |
- 1 x RS-232/422/485
- 1 x RS-232
|
| USB |
|
| Ethernet |
- 2 x 10/100/1000 Mbps (Intel® i211-AT)
|
| Display |
|
| Digital I/O |
- 4-channel in/out programmable
|
| Audio |
|
| Storage |
- 1 x M.2 KEY B (SATA, USB 2.0, PCIe x2 optional) in 22 x 42 or 30 x 42
|
| Expansion |
- 1 x Half-size PCI Express Mini Card slot with mSATA supported
|
| Others |
|
| Battery |
|
| Power Input |
- 2 x 2-pin connector
- +12V DC-in only
- AT Auto Power On function supported
|
| Power Requirements |
- Intel® Pentium® N4200 @ 1.1 GHz 8GB DDR3L
Max RMS: +12V @1.3A
- Intel® Celeron® N3350 @ 1.1 GHz 8GB DDR3L
Max RMS: +12V @1.1A
- Intel® Celeron® J3455 @1.5 GHz 8GB DDR3L
Max RMS: +12V @1.8A
|
| Watchdog Timer |
- 65536 levels, 1 to 65535 sec.
|
| Hardware Monitoring |
|
| Operating Temperature |
- -20°C to +60°C (-4°F to +140°F)
|
| Relative Humidity |
- 10% to 95% relative humidity, non-condensing
|
| Dimensions |
|
| Board Thickness |
|
| Certifications |
|
|
| Description |
Intel® Pentium® processor N4200/Celeron® processor N3350 and J3455
1 DDR3L SO-DIMM for up to 8GB of memory
2 GbE LAN
1 PCI Express Mini Card slot with mSATA supported
M.2 Key B
|
