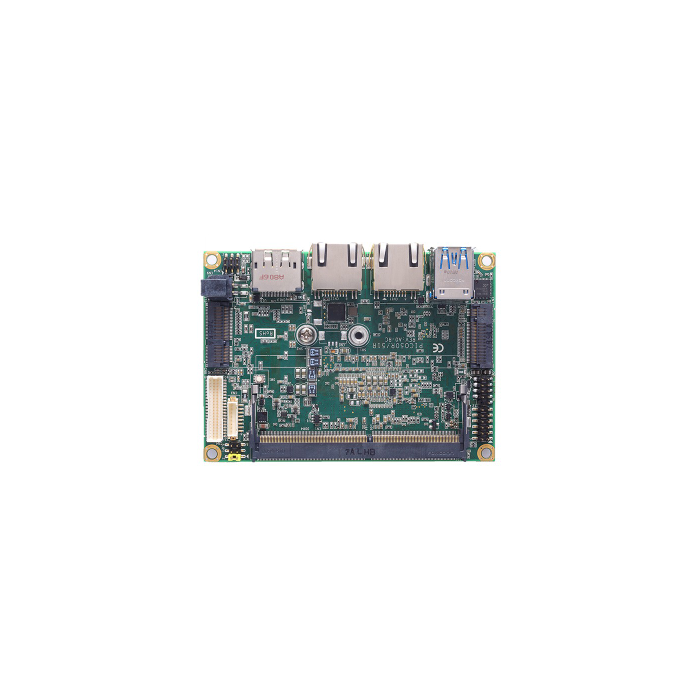

PICO51R Pico-ITX SBC 7th Gen i7/i5/i3/Celeron

A$0.00

In stock

SKU

PICO51RPGG

Pico-ITX SBC with 7th Gen Intel® Core™ i7/i5/i3 and Celeron® Processor, DisplayPort, LVDS and 2 GbE LAN

7th generation Intel® Core™ i7/i5/i3 and Celeron® processor

1 DDR4 SO-DIMM for up to 16GB of memory

2 GbE LAN

M.2 Key E

M.2 Key B

Intel® AMT 11 supported

Brand

Axiomtek

Specifications

CPU	7th gen Intel® Core™ i7/i5/i3 and Celeron® processor onboard
Chipset	SoC integrated
System Memory	1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
BIOS	AMI
COM	2 x RS-232/422/485
USB	2 x USB 2.0 2 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (ntel® i219-LM & Intel® i211-AT)
Display	1 x LVDS 1 x DisplayPort
Digital I/O	4-channel in/out programmable
Audio	Mic-in/Line-out
Storage	1 x M.2 Key B (SATA, USB 2.0, PCIe x2 optional) 1 x SATA-600
Expansion	1 x M.2 Key E (PCIe x1, USB 2.0 in 22x30)
Others	SMBus; compatible with I2C Intel® AMT 11
Battery	Lithium 3V/220mAH
Power Input	2 x 2-pin connector +12 VDC-in only AT Auto Power On function supported
Power Requirements	Intel® Core™ i7-7600U @2.8 GHz 8GB DDR4 max. RMS. +12V@3.2A Intel® Core™ i5-7300U @2.6 GHz 8GB DDR4 max. RMS. +12V@2.6A Intel® Core™ i3-7100U @2.4 GHz 8GB DDR4 max. RMS. +12V@2.3A Intel® Celeron® 3965U @2.2 GHz 8GB DDR4 max. RMS. +12V@1.6A
Watchdog Timer	65535 levels, 1 to 65536 sec.
Hardware Monitoring	Yes
Operating Temperature	-20°C to +60°C (-4°F to 140°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	100 x 72 mm
Board Thickness	1.6 mm
Certifications	CE
