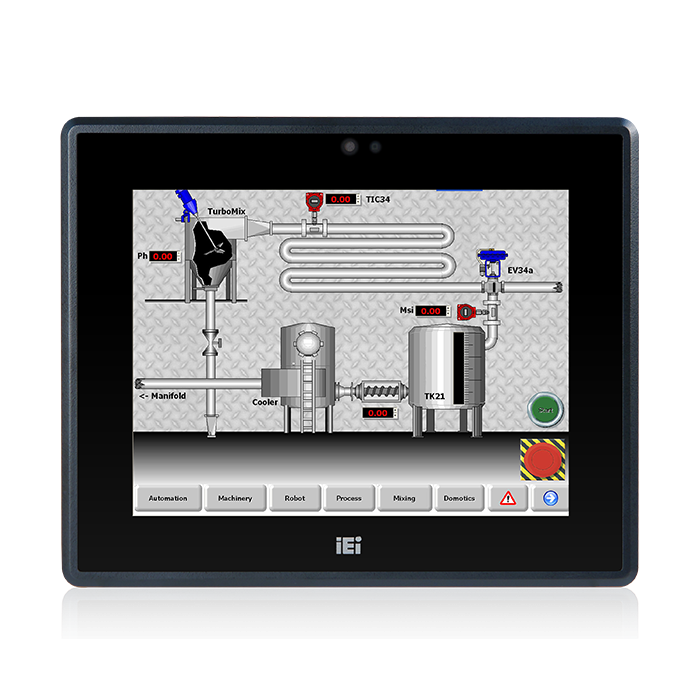

PPC-F10B-BT 10.4" Fanless J1900 Panel PC

Be the first to review this product

A$0.00

In stock

SKU

PPC-F10B-BT-J1/2G/ R-R11

10.4 inch 400 cd/m2 SVGA Celeron Processor J1900

Details

10.4 inch 400 cd/m2 SVGA Panel PC with Intel Celeron Processor J1900

10.4” fanless industrial panel PC
2.0 GHz Intel Celeron J1900 quad-core processor
Low power consumption DDR3L memory supported
IP65-compliant front panel
9 V~30 V wide DC input
mSATA SSD supported
Dual GbE for backup
-10°C~50°C extended operating temperature

More Information

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Display
Backlight MTBF(hrs)	50000
Brightness(cd/m2)	500
Contrast Ratio	500:1
LCD Size	8”(4:3)
Max Resolution	800(W) x 600(H)
Environment
Humidity	10% to 95% (non-condensing)
IP Level	Front IP 65
Operating Temperature	-10°C~50°C (14°F~122°F)
Safety & EMC	CE & FCC Class A certified
Storage Temperature	-20°C~60°C (-4°F~140°F)
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal) 1 x Full-size/Half-size PCIe Mini slot (PCIe signal only)
I/O Interface
I/O Ports and Switches	1 x RJ-45 LAN port 1 x RS-232 COM port (DB-9 connector) (RI/5V/12V) 1 x RS-422/485 2 x USB 3.0 1 x 9 V~30 V DC lockable DC jack (2-pin) 1 x Audio port (line-out) 1 x Power switch
RAM	2 x 204-pin DDR3L SO-DIMM slots (max. 8GB)
LCD
LCD Color	16.2M
Pixel Pitch (mm)	0.2025 (H) x 0.0675 (V)
Viewing Angle (H-V)	140° / 120°
Physical Characteristics
Color	Black C
Construction	Aluminum front bezel
Cutout Dimensions	207 x 154
Dimensions (LxWxH) (mm)	182.2 x 222.2 x 44
Mounting	Stand, panel mount, rack mount, VESA 75x75
Power
Power adapter	9V~30VDC
System
CPU	Intel® Celeron® J1900 quad-core on-board SoC, 2GHz
SSD	mSATA
Touch
Touch Screen	5-wire resistive type flat touchscreen
Weight
Weight	1.17 kg
I/O Interface
I/O Interface	1 x AT/ATX Switch
	1 x Audio(line-out)
	2 x LAN(GbE)
	1 x Power In(9-30V Lockable power jack)
	1 x Power Switch
	1 x RS-232(RJ-45)
	1 x RS-422/485(DB-9)
	1 x Reset Button
	2 x USB3.0
Display
Backlight MTBF(hrs)	30000
Brightness(cd/m2)	400
Contrast Ratio	700:1
LCD Size	10.4”
Max Resolution	800(W) x 600(H)
Environment
Humidity	10% to 95% (non-condensing)
IP Level	Front IP 65
Operating Temperature	-10°C~50°C (14°F~122°F)
Safety & EMC	CE & FCC Class A certified
Storage Temperature	-20°C~60°C (-4°F~140°F)
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal) 1 x Full-size/Half-size PCIe Mini slot (PCIe signal only)
I/O Interface
I/O Ports and Switches	1 x RJ-45 LAN port 1 x RS-232 COM port (DB-9 connector) (RI/5V/12V) 1 x RS-422/485 2 x USB 3.0 2 x USB 2.0 1 x 9 V~30 V DC lockable DC jack (2-pin) 1 x Audio port (line-out) 1 x Power switch
RAM	2 x 204-pin DDR3L SO-DIMM slots (max. 8GB)
LCD
LCD Color	16.2M
Pixel Pitch (mm)	0.264 (H) x 0.264 (V)
Viewing Angle (H-V)	160° / 140°
Physical Characteristics
Description	10.4 inch 400 cd/m2 SVGA Panel PC with Intel Celeron Processor J1900 10.4” fanless industrial panel PC 2.0 GHz Intel Celeron J1900 quad-core processor Low power consumption DDR3L memory supported IP65-compliant front panel 9 V~30 V wide DC input mSATA SSD supported Dual GbE for backup -10°C~50°C extended operating temperature
