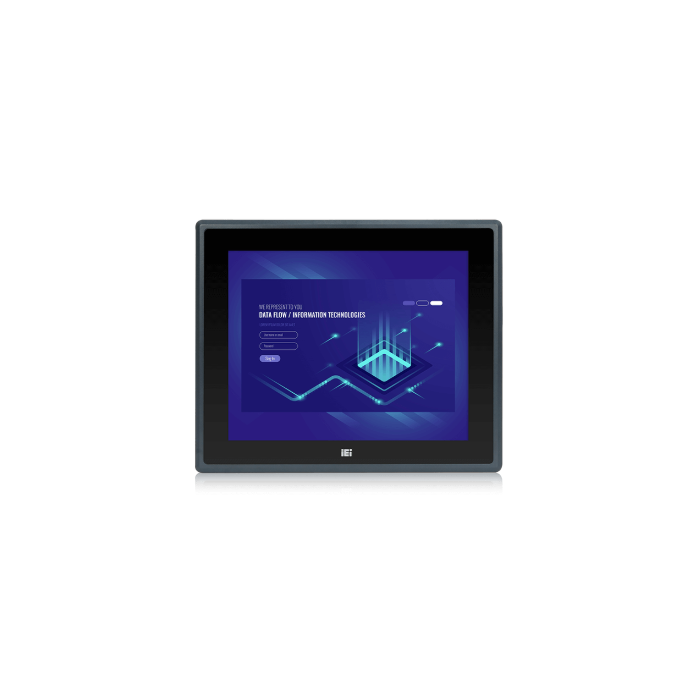

PPC-F15C-Q370 15" Panel PC

A$0.00

In stock

SKU

PPC-F15C-Q370

15" 450cd/m² 1024 x768 AI modular Panel PC , LGA 1151 Intel® Core™ i7/i5/i3 and Pentium, TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU

Details

15” Panel PC with 8th Generation LGA 1151 Intel® Core™ i7/i5/i3 and Pentium® processor

Four hot-swappable and accessible HDD drive bays, support RAID 0/1/5/10

Two PCIe 3.0 by 4 and two PCIe 3.0 by 8 slots

Dual M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD support

QTS-Gateway support

More Information

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Display
Backlight MTBF(hrs)	70000
Brightness(cd/m2)	450
Contrast Ratio	800:1
LCD Size	15”
Max Resolution	1024x768
Environment
Humidity	5% ~95%, non-condensing
IP Level	IP66 compliant front panel
Operating Temperature	-20°C ~ 50°C (with SSD and TDP 65W processor) -20°C ~ 40°C (with HDD or add-on cards without fan)
Safety & EMC	CE, FCC, CCC
Storage Temperature	-30°C ~ 60°C
Expansion Slots
Expansion Slots	2 x PCIe 3.0 by 8 (by 16 slot) 2 x PCIe 3.0 by 4 ( maximum card size supported: 68 mm x 167 mm)
Form factor
Form factor	8th Genertion Intel CoreTM i7/i5/i3 porcessors in the LGA 1151 Intel® 300 Series Chipsets Q370
I/O Interface
Ethernet	Intel® I211AT Ethernet controllers
Other Features
TPM	Support(2x10pin, P=2.54mm)
Physical Characteristics
Color	Front frame: Cyan-blue (PSM 296C); Others: Black C
Cutout Dimensions	361.1x285.6
Dimensions (LxWxH) (mm)	378.5x303x118
Mounting	Panel/Rack mount
Net Weight	7.3
Power
Power Supply	AC input ATX power supply 1. 250 W power supply - Input: 115VAC~230VAC, 50/60Hz - Output (max.): 3.3V@12A, 5V@14A, 12V@25A, -12V@0.3A,+5Vsb@3A 2. 350 W power supply (Build to Order) - Input: 115VAC~264VAC, 50/60Hz - Output (max.): 3.3V@14A, 5V@16A, 12V@29A, -12V@0.3A,+5Vsb@3A - Efficiency: Full load (100%) 87%, Typical load (50%) 90%, Light load (20%) 87%
Storage
Storage	4 x Hot-swappable SATA 6G/s HDD/SSD bay (support RAID 0/1/5/10) 2 x M.2 M-key (2280, PCIe 3.0 x4), support NVMe SSD
System
Chipset	Intel® 300 Series Chipsets Q370
Cooling method / System Fan	System fan
CPU	8th Generation LGA1151 Intel® Core™ i7/i5/i3 and Pentium® CPU
Memory Max.	Two 288-pin 2666/2400 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots (system max. 64 GB)
Touch
Touch Controller	EETI EXC3188
Touch Screen	10-point Projected capacitive touch window, 6H (Anti-UV, Anti-glare Surface)
I/O Interface
I/O Interface	1 x AT/ATX switch
	1 x HDMI
	2 x LAN
	1 x Line out
	1 x Mic
	1 x Power Switch
	1 x Reset Button
	2 x RS-232
	6 x USB 3.0

Description

15” Panel PC with 8th Generation LGA 1151 Intel® Core™ i7/i5/i3 and Pentium® processor

Four hot-swappable and accessible HDD drive bays, support RAID 0/1/5/10

Two PCIe 3.0 by 4 and two PCIe 3.0 by 8 slots

Dual M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD support

QTS-Gateway support
