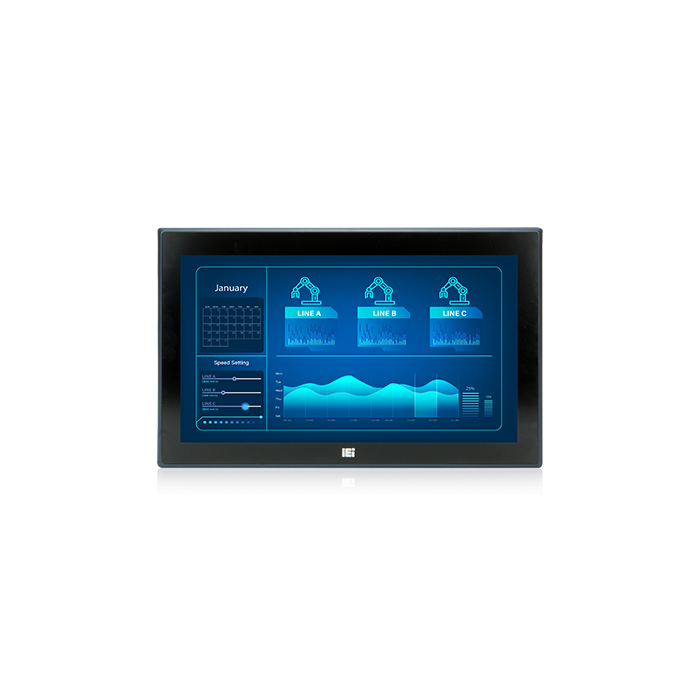

PPC-FW15D-ULT5 15.6” Industrial Panel PC
A$0.00
In stock
SKU
PPC-F15D-ULT5-xx/4G/PC-R10
15.6” 8th gen Core i PCAP Panel PC
15.6” Panel PC with 8th gen Intel® Whiskey Lake-U processors
Low power consumption and fanless design
IP66-rated front panel for water and dust resistance
Touch screen with anti-UV / anti-glare coating
Support PoE PD power
Support NVMe SSD
More Information
| Brand |
IEI Integration Corp. |
| Specifications |
| Display |
| LCD Size |
15.6” |
| Brightness(cd/m2) |
400 |
| Max Resolution |
1366 x 768 |
| Contrast Ratio |
500:1 |
| Backlight MTBF(hrs) |
50000 |
| System |
| Cooling method / System Fan |
Fanless |
| CPU |
8th Genertion Intel® Core™ i5-8365U 4.10GHz
8th Genertion Intel® Celeron® 4305U 2.20GHz |
| Chipset |
Intel® Whiskey Lake-U |
| Memory Ext. |
2 x 260-pin 2400 MHz dual-channel DDR4 unbuffered SO-DIMM |
| Memory Max. |
32GB |
| Storage |
2.5” HDD/SSD SATA 3(6.0Gb/s) bay |
| I/O Interface |
| Ethernet |
2x Intel® I211
1x Intel® I219 |
| Audio Codec |
ALC888S |
| Power |
| Input |
+12VDC |
| Power adapter |
12V @ 8A(96W) |
| Power consumption |
55W |
| Environment |
| Operating Temperature |
-10°C ~ 50°C (with air flow) |
| Operating Vibration |
5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak |
| Operating Shock |
10G acceleration part to part (11ms) |
| Safety & EMC |
CE, FCC |
| Humidity |
10% ~ 95% (non-condensing) |
| Storage Temperature |
-20°C ~ 60°C |
| IP Level |
Front panel IP66 |
| Physical Characteristics |
| Color |
PANTONE 296 C |
| Mounting |
Wall mount, Panel mount, Rack mount |
| Dimensions (LxWxH) (mm) |
400.1 x 253.3 x 77.1 |
| Net Weight |
6.1kg |
| Construction Front Panel |
Aluminum |
| Cutout Dimensions |
379.1 x 232.3 |
| Expansion Slots |
| Expansion Slots |
M.2 2230 A-Key(PCIe x1, USB 2.0; support Wi-Fi, BT)
M.2 2280 M-Key(PCIe x4; support NVMe SSD) |
| LCD |
| LCD Color |
16.2M |
| Pixel Pitch (mm) |
0.25 x 0.25 |
| Viewing Angle (H-V) |
170°/160° |
| Touch |
| Touch Screen |
PCAP 10-point |
| Touch Controller |
EETI |
| Other Features |
| TPM |
TPM 2.0(Optional) |
| I/O Interface |
| I/O Interface |
1 x AT/ATX Switch |
| |
1 x Clear CMOS |
| |
1 x DC Input Jack(12V Din 4Pin/lock) |
| |
1 x HDMI |
| |
3 x LAN(2 x Support PoE(IEEE 802.3at/bt, optional)) |
| |
1 x Line out |
| |
1 x Power Switch(with LDE(Blue)) |
| |
1 x Reset Button |
| |
2 x RS-232(1 x RS-232/422/485, 1 x RS-232) |
| |
4 x USB 3.2 Gen2x1 |
|
| Description |
15.6” Panel PC with 8th gen Intel® Whiskey Lake-U processors
Low power consumption and fanless design
IP66-rated front panel for water and dust resistance
Touch screen with anti-UV / anti-glare coating
Support PoE PD power
Support NVMe SSD
|
