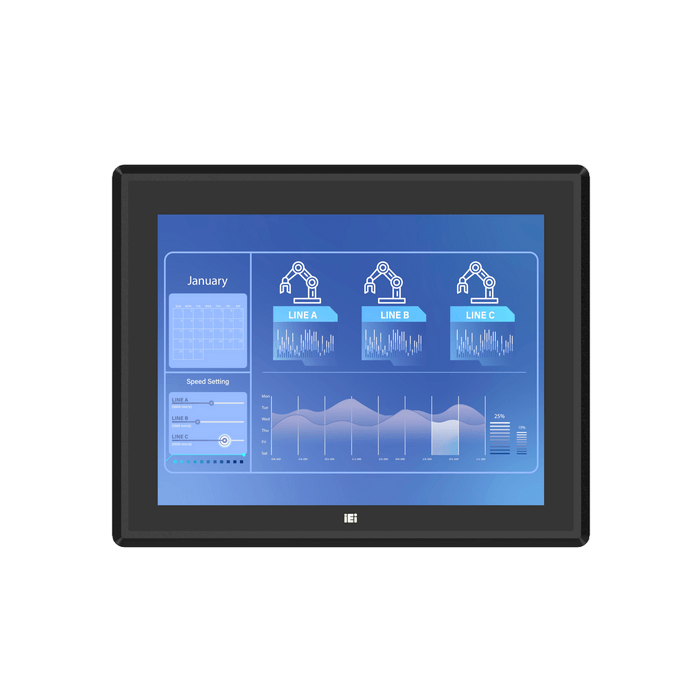

PPC2-C15-ADL 15” High Performance Panel PC IP65 Front

Be the first to review this product

A$0.00

In stock

SKU

PPC2-C15-ADL-xx/4G-R10

15" High Performance Panel PC IP65 Front with 12th Gen Intel Core i9/i7/i5/i3 and Pentium Processor

Key Features:

12th Gen Intel® Processors Platform
IP65 Front
PCIe Gen4 x16 slot (x16 signal)
Anti-glare and Anti-UV PCAP
Support Gloved and Wet Hand Operation
Newly Designed Panel Mount Kit
New Graphical BIOS Interface

Details

Key Features:

12th Gen Intel® Processors Platform
IP65 Front
PCIe Gen4 x16 slot (x16 signal)
Anti-glare and Anti-UV PCAP
Support Gloved and Wet Hand Operation
Newly Designed Panel Mount Kit
New Graphical BIOS Interface

More Information

Brand

IEI Integration Corp.

Specifications

System
CPU	12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor (LGA1700) TDP 65W
Chipset	Intel H610
Memory Ext.	Two 260-pin 3200 MHz Dual-Channel DDR4 SO-DIMM (MAX:64GB)
Storage	1 x 2.5” SATA HDD bay (Height limit 7.5mm)
I/O Interface
Ethernet	2 x 2.5GbE LAN via Intel® I225V
Expansion	1 x PCIe Gen4 x 16 Slot with x16 Signal 1 x M.2 E-Key 2242 (PCIe Gen3 x 1 + CNVI) 1 x M.2 M Key 2242/2280 NVMe (PCIe Gen3 x 4)
Power
Power Supply	AC input ATX power supply 250 W power supply - Input: 100V~240V AC, 47Hz-63Hz - Output (max.): 3.3V@6A, 5V@12A, 12V@17A, -12V@0.5A,+5Vsb@2A Support AT/ATX mode ErP/EuP Compliant
Environment
Operating Temperature	-10ºC ~ 60ºC
Safety & EMC	CE, FCC Class A, UKCA
Humidity	10% ~ 95%@40ºC, non-condensing
Storage Temperature	-20ºC ~ 60ºC
IP Level	IP 65 compliant front panel
Physical Characteristics
Color	Black
Mounting	VESA 100, Panel, Wall, Rack, Stand and Arm
Dimensions (LxWxH) (mm)	378.5 x 303 x 76.16
Net Weight	5.715kg
Construction	Aluminum front cover and sheet metal rear cover
LCD
Size	15” (4:3)
Resolution	1024 (W) x 768 (H)
Brightness (cd/m2)	400 cd/m²
Contrast Ratio	800 : 1
LCD Color	16.2M
Pixel Pitch (mm)	0.297 x 0.297
Viewing Angle (H-V)	160°/150°
Backlight MTBF	70,000 hours
Touch
Touch Screen	Multi-point projected capacitive type (anti-UV / anti-glare coating,support gloves) Surface hardness: 7H
Touch Controller	EETI 80 series
Other Features
System Cooling	Smart Fan (2xCPU FAN, 2xSYS FAN)
TPM	Intel® Platform Trust Technology
I/O Interface
I/O Interface	1 x AT/ATX switch
	1 x Clear CMOS Button
	1 x HDMI (2.0, up to 3840*2160 @60Hz)
	2 x LAN (Intel® I225V 2.5GbE controller)
	1 x Power Switch
	1 x Reset Button
	4 x RS-232 (by DB9)
	1 x RS-232/422/485 (by DB9)
	2 x USB 2.0 (Type-A)
	2 x USB 3.2 Gen1x1 (Type-A, 5Gb/s)
	2 x USB 3.2 Gen2x1 (Type-A, 10Gb/s)
OS Support
OS Support	Windows 10 IoT Linux

Description

Key Features:

12th Gen Intel® Processors Platform
IP65 Front
PCIe Gen4 x16 slot (x16 signal)
Anti-glare and Anti-UV PCAP
Support Gloved and Wet Hand Operation
Newly Designed Panel Mount Kit
New Graphical BIOS Interface
