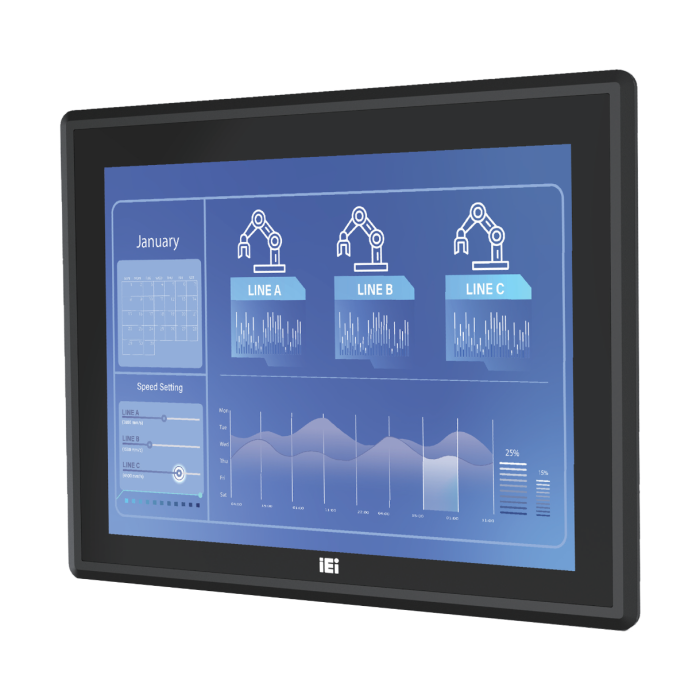

PPC2-C150-ADLP 15" Fanless IP65 Front Panel PC

Be the first to review this product

A$0.00

In stock

SKU

PPC2-C150-ADLP-ix/8G-R10

15.0”, 450nit, 1024x768, Intel Alder Lake-P Processor, 8GB on-board RAM, HDMI, 12V DC, PCAP touchscreen

Key Features:

Fanless
Intel Alder Lake-P Platform
On board 8GB RAM (no need to worry about vibration issues)
4:3 display; 1024 x 768 resolution
IP65-compliant front panel

Details

15.0”, 450 cd/cm², 1024x768, Panel PC with Intel Alder Lake-P Processor, 8GB on-board RAM, HDMI output, black, 12V DC input, projected capacitive touchscreen with AG

Key Features:

Fanless
Intel Alder Lake-P Platform
On board 8GB RAM (no need to worry about vibration issues)
4:3 display; 1024 x 768 resolution
IP65-compliant front panel

More Information

brand

IEI Integration Corp.

Specifications

Model	PPC2-C150-ADLP
LCD Display	15.0" (4:3)
Resolution	1024 (W) x 768 (H)
Brightness	450 cd/cm²
Contrast Ratio	800:1
LCD Color	16.2M
Viewing Angle (H-V)	160°/150°
Backlight MTBF	50,000 hours
CPU (SoC)	12th Generation Intel® Core™ i7/i5/i3 Processor ( Alder Lake-P)
Memory	Dual-channel 8GB LPDDR4x on-board
Touchscreen	Multi-point projected capacitive type (anti-UV / anti-glare coating, support gloves) Surface hardness: ≥7H
Touch Controller	Projected capacitive type IC: EETI 80
Ethernet	LAN1: Intel® I225V 2.5GbE controller LAN2: Intel® I225-LM 2.5GbE controller (support Intel® AMT )
Expansion	1 x M.2 M key 2242 (PCIe Gen4 x 4) 1 x M.2 M key 2280 (PCIe Gen4 x 4) 1 x M.2 A key 2230 (PCIe Gen3 x1 + USB 2.0)
Mounting	VESA 100, Panel, Wall, Rack, Stand and Arm
Construction Material	Aluminium front cover and sheet metal rear cover
Enclosure Color	Silver+Black
I/O Ports, Switch	2 x RS-232 by DB9 1 x HDMI output 2 x RS-232/422/485 by DB9 1 x 12V DC Jack 2 x 2.5GbE RJ45 1 x Power button 2 x USB 3.2 Gen2 1 x Reset button 2 x USB 3.2 Gen1 1 x AT/ATX switch 1 x USB 2.0
Thermal Solution	Fanless
Power Input	DC 12V
TPM	Intel® Platform Trust Technology
Watchdog Timer	Software Programmable support 1~255 sec. system reset
Operating Temperature (with airflow)	-10ºC ~ 50ºC
Storage Temperature	-20ºC ~ 60ºC
Humidity	10% ~ 95%@40ºC, non-condensing
IP Level	IP 65 compliant front panel
Safety and EMC	CE/FCC Class A/UKCA
Operation Vibration	MIL-STD-810G 514.6C-1
Operation Shock	Half-sine wave shock 5G; 11ms; 100 shocks per axis
Dimensions (H x W x D)	378.50 x 303.00 x 61.00
Net Weight	TBD
ErP	ErP 2009/125/EC
OS	Windows 10/11 IoT, Linux

Packing List
1 x Power Cord	1 x Power Adapter
1 x Panel Mount Kit	1 x QIG

Ordering Information
PPC2-C150-ADLP-i7/8G-R10	15.0” 450 cd/cm² 1024x768 Panel PC with Intel® i7-1260P Processor, 8GB LPDDR4x on-board, HDMI output, black, 12V DC input, projected capacitive touchscreen with AG, R10
PPC2-C150-ADLP-i5/8G-R10	15.0” 450 cd/cm² 1024x768 Panel PC with Intel® i5-1240P Processor, 8GB LPDDR4x on-board, HDMI output, black, 12V DC input, projected capacitive touchscreen with AG, R10
PPC2-C150-ADLP-i3/8G-R10	15.0” 450 cd/cm² 1024x768 Panel PC with Intel® i3-1220P Processor, 8GB LPDDR4x on-board, HDMI output, black, 12V DC input, projected capacitive touchscreen with AG, R10

Options
Item	Part No	Description
Arm	ARM-11-RS	VESA 75/100 Desk Arm
Stand	STAND-C12-R10	VESA 75/100 Easy Stand
Wall Mount Kit	AFLWK-19B	Monitor Wall Mount kit
OS	WIN10-IoTE2021-H-RS WIN10-IoTE2021-V-RS	Win10 IoT Ent LTSC 2021 MultiLang High End Win10 IoT Ent LTSC 2021 MultiLang Value

Description

15.0”, 450 cd/cm², 1024x768, Panel PC with Intel Alder Lake-P Processor, 8GB on-board RAM, HDMI output, black, 12V DC input, projected capacitive touchscreen with AG

Key Features:

Fanless
Intel Alder Lake-P Platform
On board 8GB RAM (no need to worry about vibration issues)
4:3 display; 1024 x 768 resolution
IP65-compliant front panel

Reviews

Write Your Own Review

Downloads

Datasheet
