DVI-D Signal Input: 2 x DVI (24-pin, female) VGA Signal Output: 1 x D-sub (15-pin, female) - Clone of VGA IN* Composite Video Input: 1 x BNC connector (female)
RAM
4GB 1600MHz DDR3 SDRAM (2GB*2) Two 204-pin 1600/1333 MHz dual-channel DDR3 SDRAM support up to 16GB
LCD
LCD Color
16.7M
Pixel Pitch (mm)
0.2767mm x 0.2767mm
Viewing Angle (H-V)
178° / 178°
Physical Characteristics
Cutout Dimensions
576 mm x 358 mm
Dimensions (LxWxH) (mm)
592 mm x 374 mm x 113 mm
System
Chipset
Intel® QM87
CPU
Intel® 22nm 4th generation Mobile Core™ i5-4400E 2.7GHz processor
HDD
1 x 2.5" SATA HDD bay
SSD
CF Type II
Touch
Touch Controller
6H
Touch Screen
EXC7200 (2-point)
Weight
Weight
13.03Kg
I/O Interface
I/O Interface
2 x LAN(RJ-45 for Gbe)
1 x Line in
1 x Line out
1 x Mic
1 x PS/2
1 x Power Switch
1 x RS-232((DB-9))
4 x RS-422/485((2.5 kv isolation protection))
2 x USB2.0
2 x USB3.0
1 x HDMI
1 x DVI-D
1 x Power In(Isolated 18-36V DC terminal block)
2 x CAN-bus(terminal block (2.5 kv isolation protection))
2 x Antenna SMA((reserved))
1 x VGA
Description

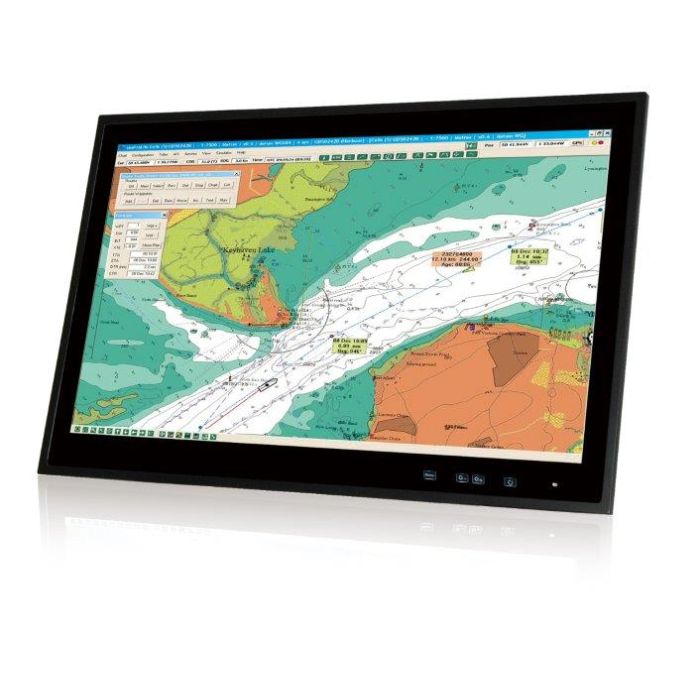

24” Fanless Panel PC with 4th Generation Intel®Core™ i5 Dual-core Processor
● -15°C ~ +55°C Wide Temperature and IP66 Protection with Flat-bezel Projected Capacitive Touchscreen
● Excellent Visual Performance
- Three independent displays
- Full OSD function configuration
- 0% ~ 100% full range dimming
- 178°/178° wide viewing angles
- Optical bonding improves visibility under bright light (optional)
