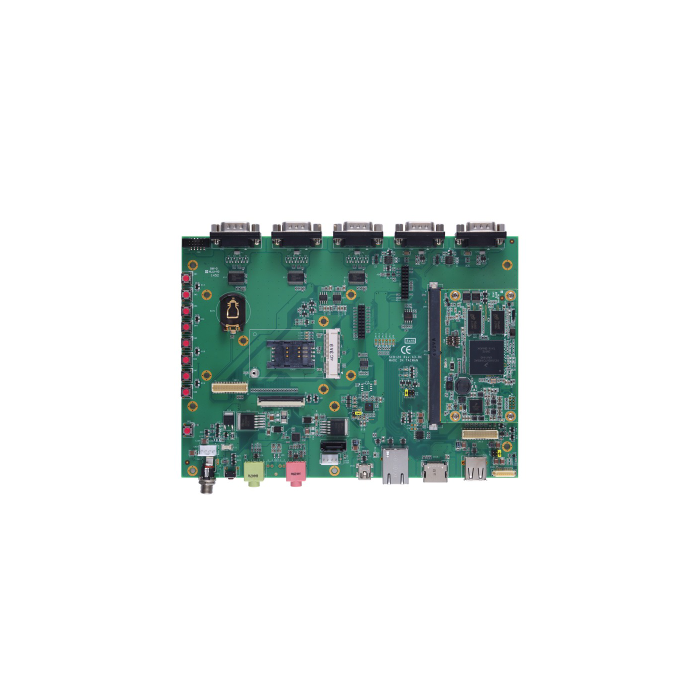

SCM120-120-EVK - SMARC 1.0 Cortex-A9
A$0.00
In stock
SKU
SCM120-120-EVK - SMARC 1.0 Cortex-A9
SMARC v1.0 SoM Evaluation Kit with Quad/DualLite 800 MHz (Industrial) SoC,1GB Memory, 4GB eMMC, Gigabit Ethernet, Audio, CAN, MIPI and PCAM
Ultra low power consumption Cortex™-A9
2 CAN 2.0B
24-bit TTL LCD
LVDS/HDMI 1080P
10/100/1000 Mbps Ethernet
Open GL ES2.0
Linux3.0.35/Android 4.3
Audio
More Information
| Brand |
Axiomtek |
| Specifications |
| CPU |
- Freescale i.MX6 Quad/DualLite ARM Cortex™-A9 CPU 800 MHz (On SCM120 SoM)
|
| Chipset |
|
| System Memory |
- Onboard DDR3-1600, up to 1GB (on SCM120 SoM)
|
| OS |
- Linux kernel 3.0.35
- Android 4.3
|
| COM |
- 1 x COM with TX/RX/RTS/CTS
- 1 x Console port
|
| USB |
- 2 x USB 2.0
- 1 OTG client and 1 Host
|
| Ethernet |
|
| Display |
- 1 x HDMI 1080P
- 1 x Dual channel 24-bit LVDS
- 1 x 24-bit TTL LCD
|
| CAN |
|
| I2C |
|
| SPI |
|
| GPIO |
|
| Audio |
|
| Storage |
- 1 x SD/MMC socket
- 1 x SATA connector
|
| Expansion |
- 1 x Full size PCI Express Mini Card (with SIM)
- 1 x connector with I2C/SPI/UART
|
| Others |
- 1 x Serial camera
- 8-button detect circuit keypad
|
| Battery |
- Battery on the Baseboard is required
|
| Power Requirement |
|
| Operating Temperature |
|
| Relative Humidity |
- 10% ~ 95%, non-condensing
|
| Dimensions |
|
| Board Thickness |
|
| Certifications |
|
|
| Description |
Ultra low power consumption Cortex™-A9
2 CAN 2.0B
24-bit TTL LCD
LVDS/HDMI 1080P
10/100/1000 Mbps Ethernet
Open GL ES2.0
Linux3.0.35/Android 4.3
Audio
|
