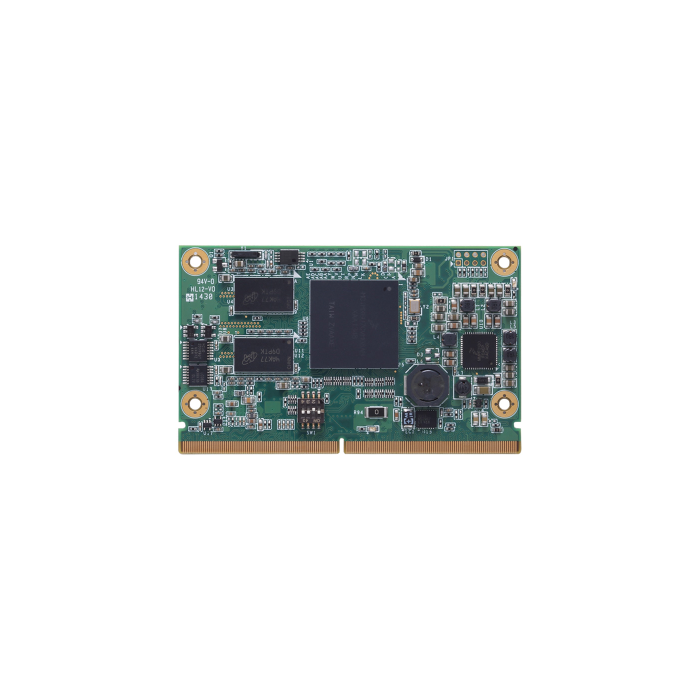

SCM120 SMARC v1.0 SoM with iMX6 Quad/DualLite 800 MHz
SMARC v1.0 SoM with iMX6 Quad/DualLite 800 MHz (Industrial) SoC, 1GB RAM, 4GB eMMC, GbE LAN, Audio, CAN, MIPI and PCAM
SMARC 1.0 (82 x 50 mm)
Ultra low power consumption Cortex™-A9
2 CAN 2.0B
24-bit TTL signal
LVDS/HDMI 1080P
10/100/1000 Mbps Ethernet
Linux3.0.35/Android 4.3
Audio
More Information
| Brand |
Axiomtek |
| Specifications |
| CPU |
- Freescale i.MX6 Series SoC with Quad/DualLite ARM Cortex™-A9 CPU 800 MHz
|
| Chipset |
|
| System Memory |
- Onboard DDR3-1600, up to 1GB
|
| OS |
- Linux kernel 3.0.35
- Android 4.3
|
| COM |
- 3 x COM with TX/RX/RTS/CTS
- 1 x Console port
|
| USB |
- 1 x USB 2.0
- 1 x OTG client
|
| Ethernet |
|
| Display |
- 1 x 24-bit TTL signal
- 1 x Dual channel 24-bit LVDS
- 1 x HDMI 1080P
|
| CAN |
|
| I2C |
|
| SPI |
|
| GPIO |
|
| Audio |
- 1 x Audio (Mic-in/Headphone)
|
| Storage |
- 1 x eMMC flash 4 GB
- 1 x SDIO interface
- 1 x SATA interface (only quad support)
|
| Expansion |
|
| Others |
- 1 x MIPI v1.0, 2 x Lane
- 1 x PCAM 8-bit
|
| Battery |
- Battery on the Baseboard is required
|
| Power Requirement |
|
| Operating Temperature |
- -40°C to +85°C (-40°F ~ +185°F)
|
| Relative Humidity |
- 10% to 95%, non-condensing
|
| Dimensions |
|
| Board Thickness |
|
| Certifications |
|
|
| Description |
SMARC 1.0 (82 x 50 mm)
Ultra low power consumption Cortex™-A9
2 CAN 2.0B
24-bit TTL signal
LVDS/HDMI 1080P
10/100/1000 Mbps Ethernet
Linux3.0.35/Android 4.3
Audio
|
