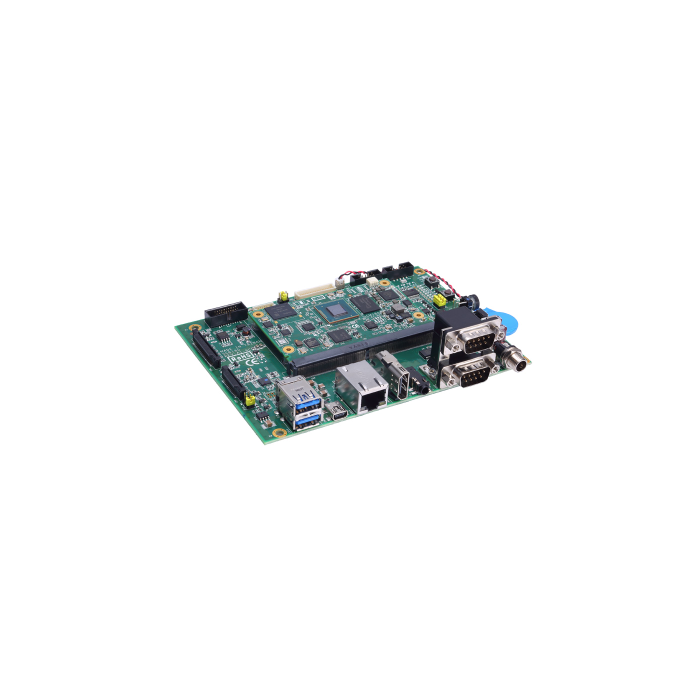

SCM180-180-EVK - SMARC 2.0 i.MX8M
A$0.00
In stock
SKU
SCM180-180-EVK - SMARC 2.0 i.MX8M
SMARC v2.0 SoM Evaluation Kit with i.MX8M Quad/Dual 1.5 GHz/1.3 GHz (Industrial) SoC, 4GB Memory, 64GB eMMC, CAN, MIPI CSI/DSI, and HDMI 2.0
Ultra-Low Power i.MX8M Dual/Quad A53 Core
Single M4 Core
HDMI 2.0a up to 4K
Dual Channel LVDS
MIPI CSI
10/100/1000 Mbps Ethernet
USB3.0, USB OTG
PCIe 2.0
CAN 2.0B
Audio
More Information
| Brand |
Axiomtek |
| Specifications |
| CPU |
- Freescale i.MX8M series SoC with Quad/Dual A53
|
| Chipset |
|
| System Memory |
- Onboard LPDDR4 1GB 3200Mbps, up to 4GB
|
| OS |
|
| COM |
- 2 x Male DB9 COM port
- 10P internal COM with RX/TX
|
| USB |
- 2 x USB 3.0
- 1 x OTG Client
- 1 x Host
|
| Ethernet |
|
| Display |
- 1 x HDMI 2.0a
- 1 x Dual channel 24-bit LVDS
|
| CAN |
- 10P Internal connector for 2x CAN 2.0B
|
| I2C |
|
| SPI |
- 16 Mbit SPI NOR Flash
- 256 Mbit QSPI NOR Flash
|
| GPIO |
|
| Audio |
|
| Storage |
|
| Expansion |
- 1 x Full size PCI Express Mini Card (with SIM)
- 1 x Half size PCI Express Mini Card
- 20-Pin connector with I2C/SPI/GPIO
|
| Others |
- 2 Button-detect Circuit Keypad
- 2 x MIPI CSI-2 (2 and 4 data lanes)
- 4-wire touch screen controller
|
| Battery |
- Battery on Baseboard Required
|
| Power Requirement |
|
| Operating Temperature |
- 0°C to +85°C (32°F to +185°F) (commercial)
- -40°C to +85°C (-40°F to +185°F) (industrial)
|
| Relative Humidity |
|
| Dimensions |
|
| Board Thickness |
|
| Certifications |
|
|
| Description |
Ultra-Low Power i.MX8M Dual/Quad A53 Core
Single M4 Core
HDMI 2.0a up to 4K
Dual Channel LVDS
MIPI CSI
10/100/1000 Mbps Ethernet
USB3.0, USB OTG
PCIe 2.0
CAN 2.0B
Audio
|
