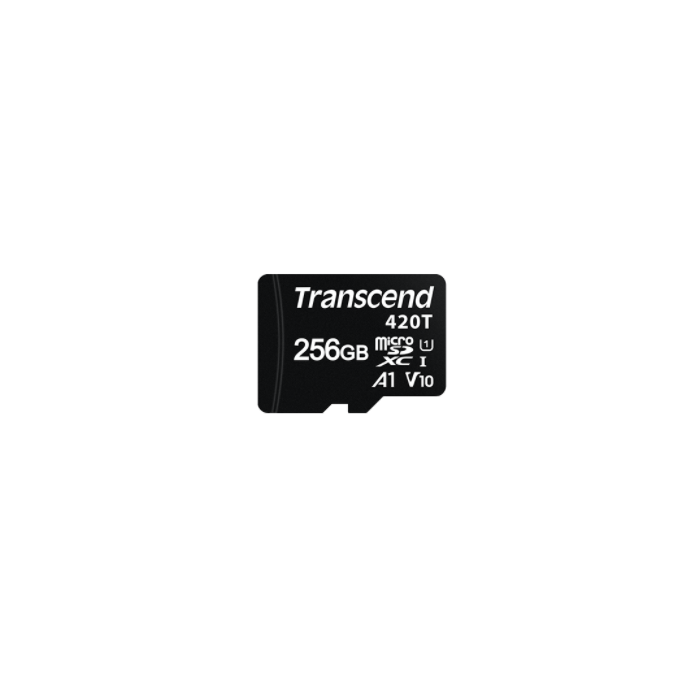

SDXC420T - microSDHC

A$0.00

In stock

Utilizing top-quality 3D NAND Flash and rated to endure 3K P/E cycles, the memory cards combine the advantages of high performance and exceptional endurance, ideal for write-intensive applications such as medical devices, surveillance systems, and POS terminals.

Details

Compliant with UHS-I

Compliant with SD specification 5.1

Compliant with UHS-I Speed Class 10

Compliant with Application Performance Class 1 (A1)

Compliant with RoHS 2.0 standards

Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed

Built-in ECC (Error Correction Code) functionality

More Information

Specifications

Appearance
Dimensions	11 mm x 15 mm x 1 mm (0.43" x 0.59" x 0.04")
Form Factor	microSD flash card
Storage
Flash Type	3D NAND flash
Capacity	16 GB/ 32 GB/ 64 GB/ 128 GB/ 256 GB
Operating Environment
Operating Voltage	2.7V ~ 3.6V
Drop Test	1.5m free fall
Operating Temperature	Standard -25°C (-13°F) ~ 85°C (185°F)
Storage Temperature	-40°C (-40°F) ~ 85°C (185°F)
Humidity	0% ~ 95%
Shock	Acceleration: 490 m/s² (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)
Vibration (Operating)	20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
Power
Power Consumption (Max.)	0.5 watt(s)
Performance
Read Speed (Max.)	95 MB/s
Write Speed (Max.)	40 MB/s
Terabytes Written (Max.)	640 TBW
Note	Speed may vary due to host hardware, software, usage, and storage capacity.
Warranty
Certificate	CE/ FCC
Warranty	Three-year Limited Warranty
Warranty Policy	Please check https://au.transcend-info.com/Warranty for more information about the Transcend Warranty Policy. Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
