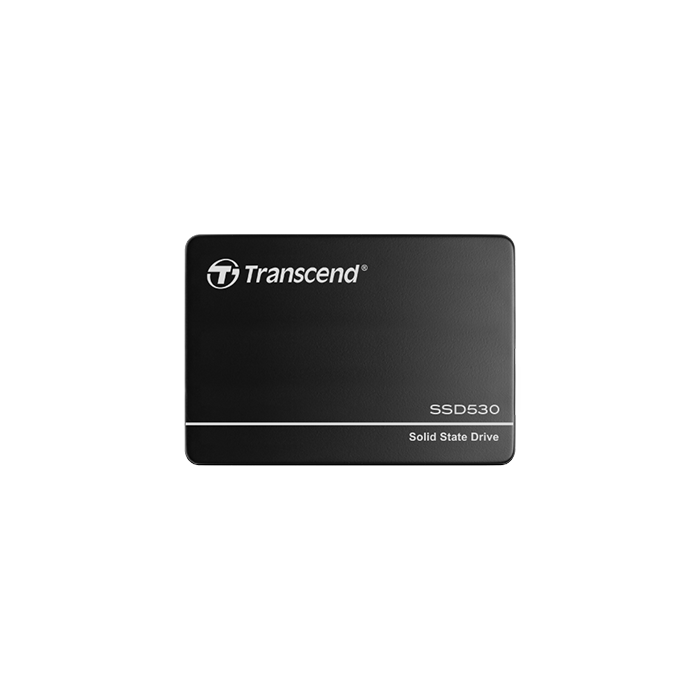

The SSD530K from Transcend includes a SATA III 6Gb/s interface, 3D NAND flash memory, and Transcend's exclusive SLC mode technology. When combined, these provide superior reliability and endurance that is nearly equivalent to SLC, but at a lower cost. The SSD530K has a DRAM cache for fast access and is designed to operate in extreme temperatures (-20°C to 75°C), making it ideal for embedded applications such as embedded automation computers, engineering machines, and fanless PCs. Reliable speeds and customised functions meet the needs of a wide range of embedded system applications.
100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.27")
Weight
54 g (1.90 oz)
Form Factor
2.5"
Interface
Bus Interface
SATA III 6Gb/s
Storage
Capacity
64 GB/
128 GB
Flash Type
3D NAND flash (SLC mode)
Operating Environment
Operating Voltage
5V±5%
Operating Temperature
Extended Temp.
-20°C (-4°F) ~ 75°C (167°F)
Storage Temperature
-55°C (-67°F) ~ 85°C (185°F)
Humidity
5% ~ 95%
Shock
1500 G, 0.5 ms, 3 axis
Vibration (Operating)
20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power
Power Consumption (Operation)
2.8 watt(s)
Power Consumption (Sleep)
0.4 watt(s)
Performance
Sequential Read/Write (CrystalDiskMark)
Read: up to 560 MB/s Write: up to 490 MB/s
4K Random Read/Write (IOmeter)
Read: up to 83,000 IOPS Write: up to 88,000 IOPS
Mean Time Between Failures (MTBF)
3,000,000 hour(s)
Terabytes Written (TBW)
up to 6,400 TBW
Drive Writes Per Day (DWPD)
45.7 (3 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Description
The SSD530K from Transcend includes a SATA III 6Gb/s interface, 3D NAND flash memory, and Transcend's exclusive SLC mode technology. When combined, these provide superior reliability and endurance that is nearly equivalent to SLC, but at a lower cost. The SSD530K has a DRAM cache for fast access and is designed to operate in extreme temperatures (-20°C to 75°C), making it ideal for embedded applications such as embedded automation computers, engineering machines, and fanless PCs. Reliable speeds and customised functions meet the needs of a wide range of embedded system applications.
