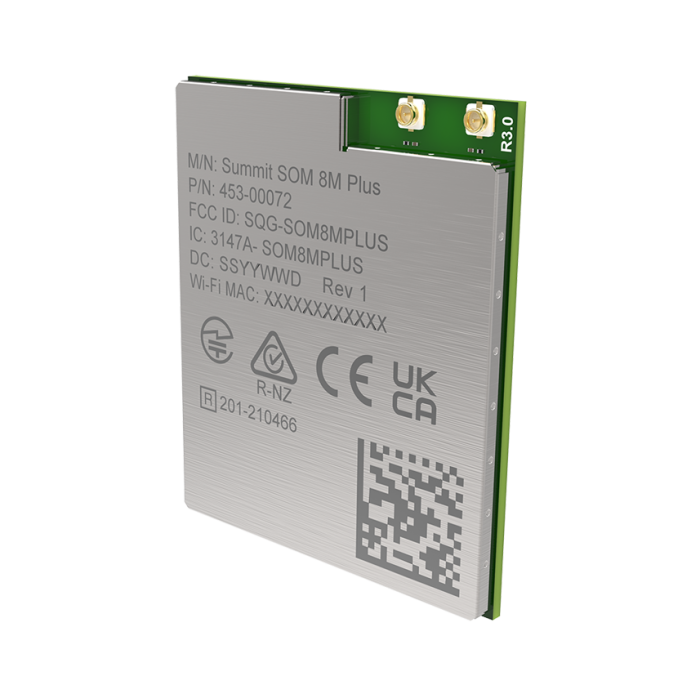

Shop Summit SOM 8M Plus System-on-Module

Details

The Summit SOM 8M Plus, which is powered by NXP Semiconductor's i.MX 8M Plus processor and 88W8997 wireless SoC, is a versatile, power-efficient quad Cortex-A53 and Cortex-M7 solution for powerful heterogeneous multiprocessing, machine learning, rich multimedia (graphics, video, vision, and audio), advanced connectivity, and enhanced security to enable high-performance, flexible solutions.

Features:

Wi-Fi 5 2x2 MU-MIMO
Bluetooth 5.3
1.6 GHz quad-core Cortex-A53 MPU and 800 MHz Corex-M7 MCU
Machine learning, graphics, video, vision, and audio – up to three displays
Secure enclave and secure boot powered by i.MX 8M Plus
Extensive range of pre-certified antennas
10+ year product lifecycle
CVE remediated Long Term Support Linux
Upcoming FIPS 140-3 Level 1 validation
Industrial temperature rating
Global certifications/registrations

More Information

More Information
Brand	Ezurio (Laird Technologies)
Specifications	Processors Microprocessor 4x Cortex®-A53 cores @ 1.6 GHz Microcontroller 1x Cortex®-M7 core @ 800 MHz Audio Tensilica® HiFi 4 DSP Graphics GC7000UL with 2 shaders for 3D and GC520L for 2D Machine Learning Neural Processing Unit (NPU) with 2.3 TOP/s Memory RAM Up to 2GB LPDDR4 standard; Up to 6GB LPDDR4 on request Storage Up to 16GB eMMC 5.1 standard; Up to 64GB eMMC 5.1 on request Machine Learning Neural Processing Unit Keyword detect, noise reduction, beamforming Speech recognition (i.e. Deep Speech 2) Image recognition (i.e. ResNet-50) Graphics and Video Graphics Processing Unit 166 million triangles/sec 1.0 giga pixel/sec 16 GFLOPs 32-bit OpenGL ES 1.1, 2.0, 3.0, OpenCL 1.2, Vulkan 2D acceleration Video Processing Unit Video Decode 1080p60 HEVC/H.265 Main, Main 10 (up to level 5.1) 1080p60 VP9 Profile 0, 2 1080p60 VP8 1080p60 AVC/H.264 Baseline, Main, High decoder Video Encode 1080p60 AVC/H.264 encoder 1080p60 HEVC/H.265 encoder Display Interfaces 1x MIPI DSI, up to UWHD and WUXGA 1x LVDS Tx, up to 1920x1080p60 1x HDMI 2.0a Tx, up to 4kp30 Vision Camera 2x 4-lane MIPI CSI Image Signal Processor 375 Mpixel/s HDR ISP supporting configurations, such as 12MP@30fps, 4kp45, or 2x 1080p80 Audio Audio Interfaces SPDIF input and output Six external SAI modules supporting I2S, AC97, TDM, codec/DSP, and DSD interfaces ASRC eARC/ARC (HDMI) 8-channel PDM mic input Peripherals Input/Output 2x USB 3.0/2.0 Dual-Role with PHY 2x Gbit Ethernet with IEEE® 1588, AVB (One also supports TSN) 2x CAN/CAN FD 4x UART 5 Mbit/s 6x I2C 3x SPI 1x SDIO 3.0/eMMC 5.1 Wireless Specification Wi-Fi Wi-Fi 5 (802.11ac) Bluetooth® v5.3 Frequency Dual-Band 2.4GHz & 5GHz Transmit Power + 18 dBm (maximum) Receive Sensitivity TBD Antenna Options 2x U.FL connectors for external antennas Raw Data Rates (Air) Wi-Fi 5 866.7Mbit/s - MCS9, 2 Spatial Streams, 80MHz, 256QAM, SGI Key Wi-Fi Features Wi-Fi 5 (802.11ac) IEEE 802.11 a/b/g/n/ac 20, 40 & 80MHz bandwidth support MU-MIMO, OFDMA Transmit Beamforming Key Bluetooth Features Bluetooth Classic Bluetooth – BR / EDR 2 x WideBand Speech (WBS) links Central / Peripheral Modes Up to 16 Bluetooth LE connections LE Secure Connections 2MPHY Supply Voltage 3.3V Power Consumption Estimated Current Continuous TX: 2.4 GHz band – TBD 5 GHz band – TBD Physical Dimensions 40mm x 47 mm x ?.? mm (SIP Modules) Environmental Temp Range -30°C to +85°C Miscellaneous Lead-Free Lead-free and RoHS-compliant Development Kit Development board, accessories, and evaluation software Qualifications Bluetooth® SIG Bluetooth 5.3 Regulatory Approvals FCC/IC/CE/MIC/RCM
Description	The Summit SOM 8M Plus, which is powered by NXP Semiconductor's i.MX 8M Plus processor and 88W8997 wireless SoC, is a versatile, power-efficient quad Cortex-A53 and Cortex-M7 solution for powerful heterogeneous multiprocessing, machine learning, rich multimedia (graphics, video, vision, and audio), advanced connectivity, and enhanced security to enable high-performance, flexible solutions. Features: Wi-Fi 5 2x2 MU-MIMO Bluetooth 5.3 1.6 GHz quad-core Cortex-A53 MPU and 800 MHz Corex-M7 MCU Machine learning, graphics, video, vision, and audio – up to three displays Secure enclave and secure boot powered by i.MX 8M Plus Extensive range of pre-certified antennas 10+ year product lifecycle CVE remediated Long Term Support Linux Upcoming FIPS 140-3 Level 1 validation Industrial temperature rating Global certifications/registrations

Reviews

Write Your Own Review

Downloads

Datasheet

Summit SOM 8M Plus System-on-Module - WiFi 5 + Bluetooth 5.3
