●CPU: Intel 7th Gen Core CPU & Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W) Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W) ●Chipset: Intel® Q170 ●System Memory: 2 x 260-pin DDR4 SO-DIMM, pre-installed one 4GB (system max: 32GB) ●Power: Input - DC Jack: 9 V~36 V DC, Terminal Block: 9 V~36 V DC Consumption: 19 V@3.68 A (Intel® Core™ i7-6700TE with 8 GB memory) Internal Connector: 5V@3A or 12V@3A ●Reliability: Operating Shock - Half-sine wave shock 5G; 11ms; 100 shocks per axis Operating Vibration - MIL-STD-810G 514.6 C-1 (with SSD) Safety/EMC - CE/FCC ●IPMI: 1 x iRIS-2400 (optional)
I/O Interface
I/O Ports
●USB: 4 x USB 3.0, 4 x USB 2.0 ●Ethernet: 2 x RJ-45 LAN1 (iRIS): Intel® I210 PCIe controller LAN2: Intel® I219LM PCIe controller ●COM Port: 4 x RS-232 (2 x RJ-45, 2 x DB-9 w/2.5KV isolation protection) 2 x RS-232/422/485 (DB-9) ●Digital I/O: 8 bit Digital I/O, 4 bit input / 4 bit output ●Display: 1 x VGA (Up to 1920 x 1200@60Hz) 1 x HDMI/DP (Up to 3840x2160@30Hz / 4096×2304@60Hz) 1 x iDP (optional) ●Audio: 1 x Line-out, 1 x Mic-in
Expansion Slots
Expansion Slots
●PCIe Mini: 1 x Half-size PCIe Mini slot 1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA) ●Backplane: 2-slot model: 1 x PCIe x16, 1 x PCI 2-slot model: 2 x PCIe x8 4-slot model: 2 x PCIe x8, 2 x PCI, 1 x Full-size PCIe Mni 4-slot model: 1 x PCIe x16, 3 x PCI, 1 x Full-size PCIe Mni
System
Cooling method / System Fan
Fanless
Drive Bays
2 x 2.5＂ SATA 6Gb/s HDD/SSD bay (RAID 0/1 support)
Indicator&Buttons
Buttons
1 x Power Button 1 x Reset Button 1 x AT/ATX Switch 1 x ACC Mode
Physical Characteristics
Construction
Extruded aluminum alloys
Color
Color
Black C + Silver
Dimensions
Dimensions
2-slot: 121.5 x 255.2 x 205 (WxDxH) (mm) 4-slot: 154.8 x 255.2 x 205 (WxDxH) (mm)
Weight
Weight
2-slot: 4.2 kg/6.3 kg 4-slot: 4.5 kg/6.5 kg
Environment
Operating Temperature
i7-6700TE -20°C ~ 45°C with air flow (SSD) i5-6500TE -20°C ~ 60°C with air flow (SSD)
Humidity
10% ~ 95%, non-condensing
Description

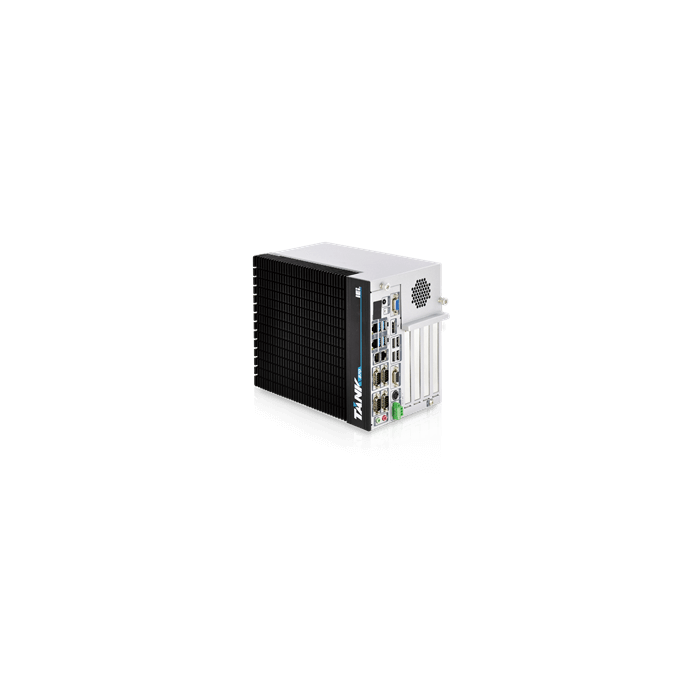

Ruggedized fanless embedded system with High-Performance 6th/7th Generation Intel® Core™ Processor
● 6th/7th Gen Intel® Core™ processor platform with Intel® Q170 chipset and DDR4 memory
● Triple independent display with high resolution support
● Rich high-speed I/O interfaces on one side for easy installation
● On-board internal power connector for providing power to add-on cards
