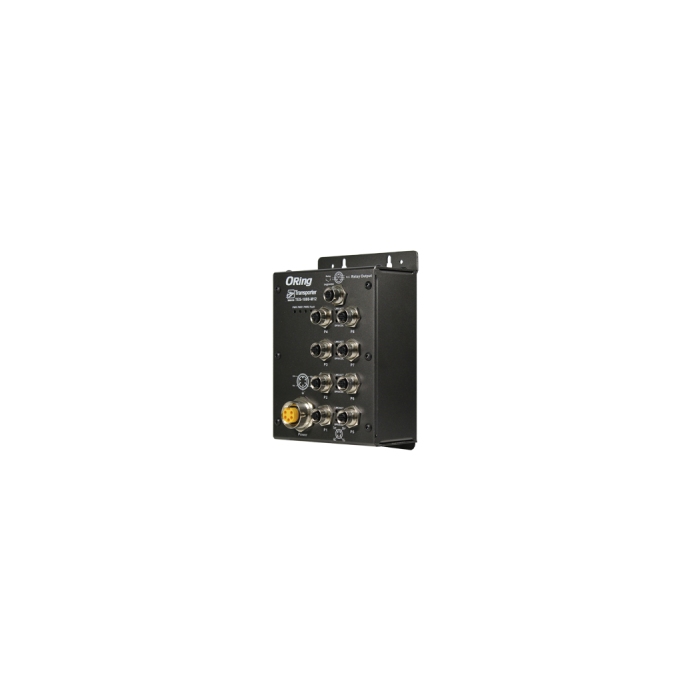

TES-1080-M12 8 port M12 Unmanaged Switch
EN50155 8-port unmanaged Ethernet switch with 8x10/100Base-T(X), M12 connector
- Industry-leading EN50155-compliant Ethernet switch for railway applications
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports store-and-forward transmission
- Supports flow control
- Warning system by relay output
- Ultra-rugged enclosure for toughest industrial usages
- M12 connectors to guarantee reliable operation against environmental disturbances
- Dual wide-range power inputs on the M23 connector: 12~48VDC
- Wall mounting enabled
More Information
| Brand |
Oring |
| Specifications |
| Physical Ports |
|
| 10/100 Base-T(X) Ports in M12 (D-coding) Auto MDI/MDIX |
8 x M12 connector (D-coding)
|
| Technology |
|
|
Ethernet Standards
|
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
|
|
MAC Table
|
8192 MAC addresses
|
|
Processing
|
Store-and-Forward
|
| LED Indicators |
|
| Power Indicator |
Green : Power LED x 2 |
|
Fault Indicatorr
|
Amber : Indicate power failure event |
|
10/100Base-T(X) M12 Port Indicator
|
Green for port Link/Act. Amber for Duplex/Collision |
| Fault contact |
|
| Relay |
Relay output to carry capacity of 3A at 24VDC on M12 connector (A-coding)
|
| Power |
|
| Redundant Input Power |
Dual 12~48VDC on M23 connector
|
| Power Consumption (Typ.) |
5 Watts |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present |
| Physical Characteristic |
|
| Enclosure |
IP-30 |
| Dimension (W x D x H) |
125 (W) x 65 (D) x 196 (H)mm (4.92 x 2.56 x 7.72 inch)
|
| Weight (g) |
831 g
|
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-40 to 70°C (-40 to 158°F) |
| Regulatory approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
| EMS |
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
|
| Shock |
IEC60068-2-27, EN61373 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6, EN61373 |
| Safety |
EN60950-1 |
| Warranty |
5 year |
|
| Description |
- Industry-leading EN50155-compliant Ethernet switch for railway applications
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports store-and-forward transmission
- Supports flow control
- Warning system by relay output
- Ultra-rugged enclosure for toughest industrial usages
- M12 connectors to guarantee reliable operation against environmental disturbances
- Dual wide-range power inputs on the M23 connector: 12~48VDC
- Wall mounting enabled
|
