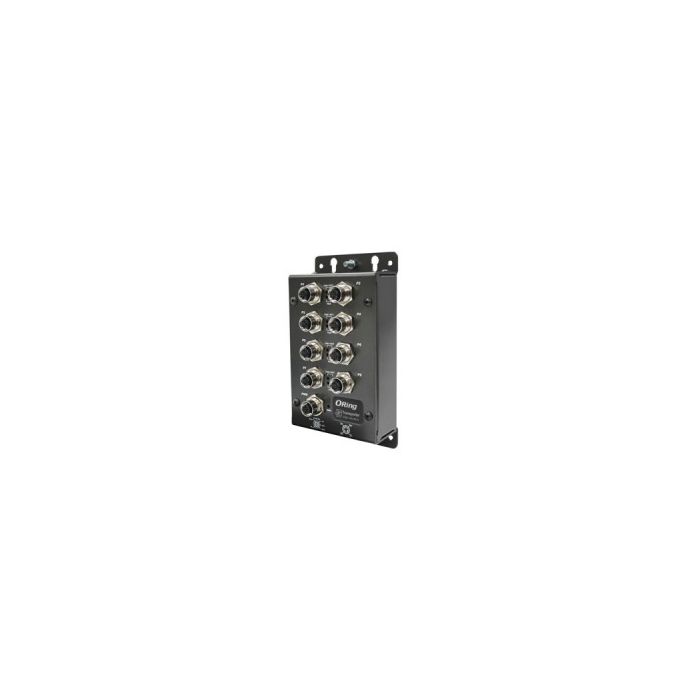

TES-180-M12 - 8 port unmanaged switch
EN50155 Compact Size 8-port unmanaged Ethernet switch with 8x10/100Base-T(X), M12 connector
▪ Leading EN50155-compliant Ethernet switch for rolling stock application
More Information
Specifications
Physical Ports 10/100 Base-T(X) Ports in M12 (D-coding) Auto MDI/MDIX 8 x M12 connector (D-coding) Technology Ethernet Standards
IEEE 802.3 for 10Base-T
MAC Table
8192 MAC addresses
Processing
Store-and-Forward
LED Indicators Power Indicator Green : Power LED Fault Indicatorr
Amber : Indicate power failure event 10/100Base-T(X) M12 Port Indicator
Green for port Link/Act. Amber for Duplex/Collision Fault contact Relay Relay output to carry capacity of 3A at 24VDC on M12 connector (A-coding)
Power Input Power 12~48VDC on M12 connector
Power Consumption (Typ.) 4.32 Watts Overload Current Protection Present Reverse Polarity Protection Present Physical Characteristic Enclosure IP-30 Dimension (W x D x H) 88.9 (w) x 40 (D) x178.2 (H) mm
Weight (g) 510 g
Environmental Storage Temperature -40 to 85°C (-40 to 185°F) Operating Temperature -40 to 70°C (-40 to 158°F) Operating Humidity 5% to 95% Non-condensing Regulatory approvals EMI FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) EMS EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-9, EN61000-4-11
Shock IEC60068-2-27, EN61373 Free Fall IEC60068-2-32 Vibration IEC60068-2-6, EN61373 Safety EN60950-1 Warranty 5 years
Description
▪ Leading EN50155-compliant Ethernet switch for rolling stock application
