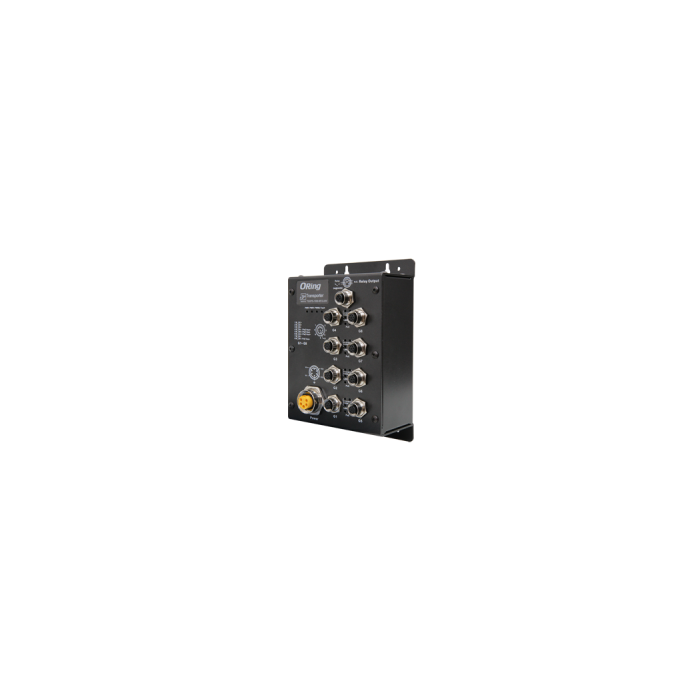

8 x M12 connector (8-pin A-coding, bypass function included by last 4 ports)
Technology
Ethernet Standards
IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow control IEEE 802.3at compliant PoE specification (Maximum 30Watts per port)
MAC Table
4K MAC addresses
Processing
Store-and-Forward
LED Indicators
Power Indicator
Green : Power LED x 3
Fault indicator
Amber : Indicate PWR1 or PWR2 failure
10/100/500/1000Base-T(X) M12 port indicator and PoE indicator
Top for 10/100/1000Mbps port Link/Act indicator. Green for 1Gbps link, Amber for 10/100 Mbps link Middle Amber for 500Mbps port Link/Act indicator Bottom blue for PoE Injected indicator
Fault Contact
Relay
Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding)
Power
Redundant Input Power
Dual DC inputs. 24 (12~57VDC) VDC on 5-pin M23 connector
Power Consumption (Typ.)
8 Watts (power consumption of P.S.E. is not included)
PoE Output Power
60 Watts (12~24VDC) / 120 Watts (24~57VDC)
Overload Current Protection
Present
Reverse Polarity Protection
Present
Physical Characteristics
Enclosure
IP-30
Dimensions (W x D x H)
125 (W) x 65 (D) x196 (H) mm
Weight (g)
1001 g
Environmental
Storage Temperature
-40 to 85°C (-40 to 185°F)
Operating Temperature
-40 to 75°C (-40 to 167°F)
Operating Humidity
5% to 95% Non-condensing
Regulatory Approvals
EMC
CE EMC (EN 55024, EN 55032), FCC Part 15B, EN 50121-3-2 (EN 50155)
EMI
EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15B class A
