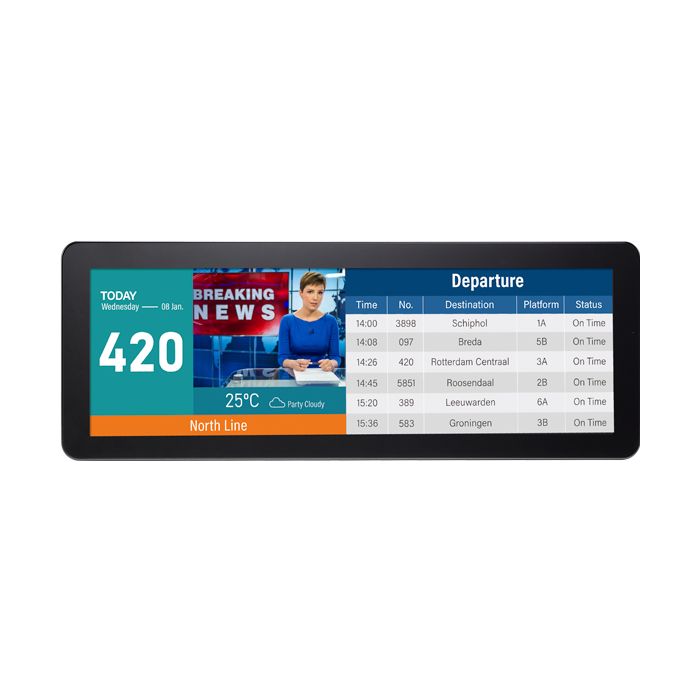

TPPC2902 28.8” Bar Passenger Information Fanless Panel PC

Be the first to review this product

A$0.00

In stock

SKU

TPPC2902_LPC

28.8” 1920x600 bar-type Passenger Information Panel PC Powered by Intel Atom® x5-E3930 Processor

Key Features:

28.8” TFT-LCD 1920 x 600 bar-type fanless panel computer
Powered by Intel Atom® x5-E3930 processor, 1.3GHz
Wide-range DC input of 9V to 36V DC
Support ignition control for power on/off delay timing management
Compliant with IP54 on the front panel
Tempered glass, surface hardness 6H
1 x DDR3L up to 8GB, M.2 2242 Key B SSD for storage device
1 x mini-PCIe expansion available for wireless communication
CE/FCC/E/e-Mark

Details

This panel computer comes with a 28.8-inch TFT-LCD bar-type display and a resolution of 1920 x 600 pixels. It is fanless and powered by an Intel Atom® x5-E3930 processor that runs at 1.3GHz. The computer can be powered by a wide range of DC inputs, from 9V to 36V DC, and supports ignition control for power on/off delay timing management. The front panel is compliant with IP54 and features a tempered glass surface with a surface hardness.

More Information

brand

NexAIOT

Specifications

LCD Panel	LCD size: 28.8 bar-type Resolution: 1920 x 600 Luminance: 500 nits cd/m2 Contrast ratio: 1,400 LCD color: 16.7M View angle: 178 (H), 178 (V) Backlight: LED
System	Intel Atom® x5 E3930 processor, 1.3GHz (burst mode: 1.8GHz)
System Front	1 x Ambient light sensor
Main Memory	1 x 204-pin DDR3L SO-DIMM socket, up to 8GB. Support up to 1866 Mhz, non-ECC and unbuffered memory
Rear I/O	1 x Power input connector, 6-pin (9V-36V DC & Ignition control) 1 x DB9 COM port for RS232/422/485 2 x RJ45 Intel® I210-AT gigabit LAN ports 4 x USB 3.0, support USB 2.0 1 x HDMI 1.4b (support 4K x 2K@30Hz) 1 x Line-in, Line-out with 16Ω Amplifier
Audio	Realtek ALC888 audio codec
Storage Device	1 x M.2 2242 Key B SSD, up to 256G max 1 x 2.5” SATA SSD reserved expansion
Expansion	1 x mini-PCIe full-size connector on board (support PCIe/USB)
Power Management	9V to 36V DC input (UPS: 12V, 24V and 36V) Ignition on/off control & programmable on/off delay timing
Environment	Vibration - IEC60068-2-64 - Operating: 1G, random, 5-500Hz, 1hr/axis (w/ storage) Drop - IEC60068-2-32 - ISTA-2A STD - 13.9kg (packing weight) & 81cm (falling height) Temperature - Operating temperature: 0~50°C - Storage temperatures: 0~70°C - Damp heat test per EN60068-2-30, 45~55°C, 95%, 48hrs, non- condensing
Operating System Support	Win10 IoT Enterprise 64-bit Linux Yocto 4.14
Mechanical Information	Color: black VESA mount (200mm x 200mm; 400mm x 200mm) Dimension: 777.3mm (W) x 292.8mm (D) x 70.2mm (H) System weight (N.W): 13.3kg, 29.32lb Package weight (G.W): 13.9kg, 30.64lb
Certification	CE (EN55024, EN55032, EN55035) FCC Class A (Part 15B) E-mark: E-13, 12/24V Complied with ITxPT power consumption requirement
