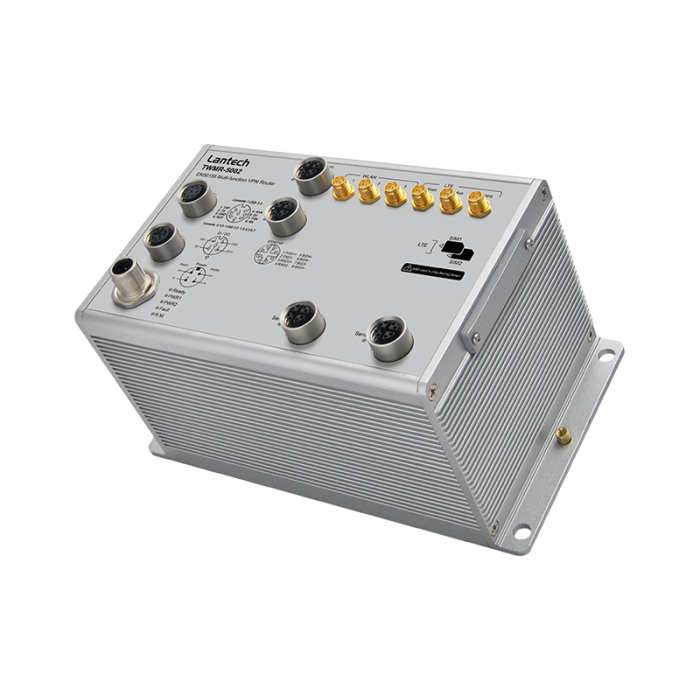

TWMR-5002
Model Code: TWMR-5002
- Built-in 1x WiFi 11ac/a/b/g/n module + 1xLTE 4G module + 2xGigabit X-coded ports(incl. 1PD)
- Up to 2 concurrent modem for 3G/4G LTE Link & GPS(1L-1AC model/2 SIMs)
- Optional TWCC**(Train Wireless Carriage Coupling) )for auto wireless coupling
Operating Mode
|
AP/BRIDGE/Client modes
|
Radio Frequency Type
|
DSSS, OFDM
|
Wireless Standard
|
IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
|
Wireless bandwidth
|
5GHz: Up to 1300Mbps
2.4GHz: Up to 450Mbps
|
Modulation
|
802.11b: DSSS
802.11a/g:
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n:
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac:
OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
|
Operating Frequency
|
IEEE 802.11 a/b/g/n ISM Band, 2.412GHz~2.472GHz, 5150MHz~5850MHz
|
Transmission Rate
|
IEEE802.11ac: up to 1300Mbps
IEEE802.11b: 1 / 2 / 5.5 / 11 Mbps
IEEE802.11a/g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps
IEEE802.11n: up to 450Mbps
|
IEEE 802.11b/g/n(2.4Gbps)
|
Output Power Tx +/- 2dB(per chain)
18dBm @ 1~11Mbps
18dBm @ 6~54Mbps
20/20dBm @ MCS0~MCS7 (HT20/40)
Receiver Sensitivity Rx +/- 2dB
≦-95dBm @ 1~11Mbps
≦-92dBm @ 6~18Mbps
≦-88dBm @ 24Mbps
≦-85dBm @ 36Mbps
≦-81dBm @ 48Mbps
≦-80dBm @ 54Mbps
≦-94dBm @ MCS0 (HT20/40)
≦-76dBm @ MCS7 (HT20/40)
|
IEEE 802.11a/n/ac(5Gbps)
|
Output Power Tx +/- 2dB(per chain)
20dBm @ 6~24Mbps
16dBm @ 36~54Mbps
19/18dBm @ MCS0 (HT20/40)
16/16dBm @ MCS7 (HT20/40)
19/18/18dBm @ MCS0 (VHT20/40/80)
13/13/13dBm @ MCS8 (VHT20/40/80)
13/13dBm @ MCS9 (VHT40/80)
Receiver Sensitivity Rx +/- 2dB
≦-92dBm @ 6~18Mbps
≦-86dBm @ 24Mbps
≦-84dBm @ 36Mbps
≦-81dBm @ 48Mbps
≦-80dBm @ 54Mbps
≦-93dBm @ MCS0 (HT20/40)
≦-71dBm/≦-80dBm @ MCS7 (HT20/40)
≦-90dBm @ MCS0 (VHT20/40/80)
≦-69dBm @ MCS8 (VHT20/40/80)
≦-66dBm @ MCS9 (VHT40/80
|
Encryption Security
|
WEP : (64-bit ,128-bit key supported)
WPA /WPA2 : IEEE802.11i(WEP and AES encryption)
WPA-PSK (256-bit key pre-shared key supported)
OKC** and 802.11r**
EAP,MD5,EAP,TLS,EAP,TTLS,EAP
MsCHAPv3 and PEAP **
|
Wireless Security
|
SSID broadcast disable**
|
More Information
