TX11D201VM0BAA

Part Name

TX11D201VM0BAA

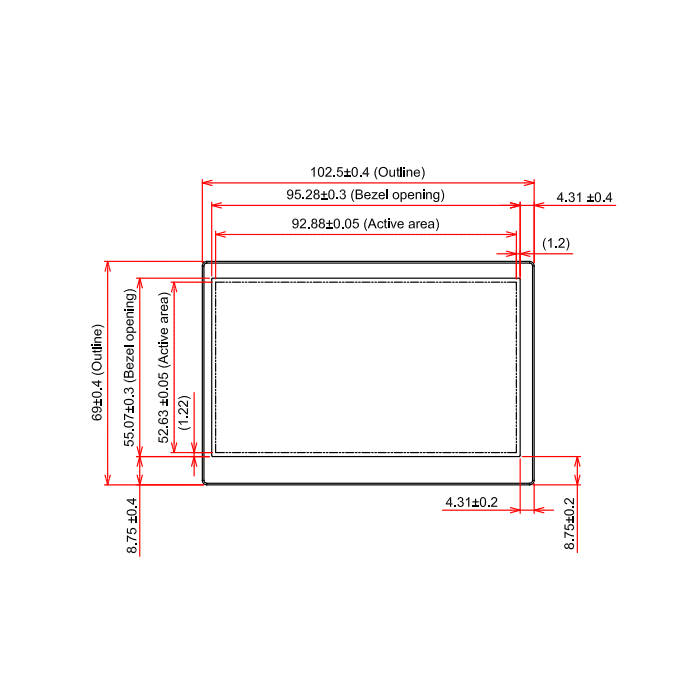

Module Dimensions

102.5 (W) mm x 69 (H) mm x 9.8 (D) mm

LCD Active Area

92.88 (W) mm x 52.632 (H) mm

Pixel Pitch

0.0645 x 3 (W) mm x 0.1935 (H) mm

Resolution

480 x 3 (RGB)(W) x 272(H) dots

Colour Pixel Arrangement

R,G,B Vertical stripe

LCD Type

Trans missive Colour TFT; Normally Black

Display Type

Active Matrix

Number of Colours

16.7M Colours (8-bit RGB)

Backlight

LED

Weight

97g

Interface

C-MOS; 68 pins

Power Supply Voltage

3.3V for LCD; 13.5V for Backlight

Viewing Direction

Super wide version
