TX14D201MM2BAA
5.7” QVGA, 4:3, RoHS compliant, LED LCD
5.7” QVGA, 4:3, RoHS compliant, LED LCD
More Information
| Specifications |
|
Part Name
|
TX14D201MM2BAA
|
|

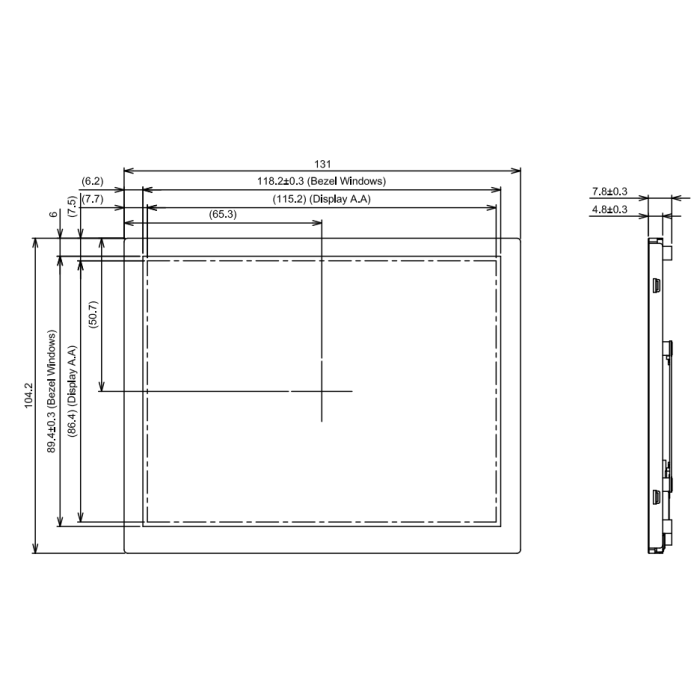

Module Dimensions
|
131 (W) mm x 104.2 (H) mm x 7.8 (D) mm
|
|
LCD Active Area
|
115.2 (W) mm x 86.4 (H) mm
|
|
Pixel Pitch
|
0.36 (W) mm x 0.36 (H) mm
|
|
Resolution
|
320 (RGB)(W) x 240(H) dots
|
|
Colour Pixel Arrangement
|
R,G,B Vertical stripe
|
|
LCD Type
|
Trans missive monochrome TFT; Normally White
|
|
Display Type
|
Active Matrix
|
|
Number of Colours
|
Grey scale 16
|
|
Backlight
|
LED
|
|
Weight
|
120g
|
|
Interface
|
8-bit parallel bi-directional interface; 40 pins
|
|
Power Supply Voltage
|
3.3V for LCD; 12V for Backlight
|
|
Viewing Direction
|
12’Oclock
|
|
| Description |
5.7” QVGA, 4:3, RoHS compliant, LED LCD
|
