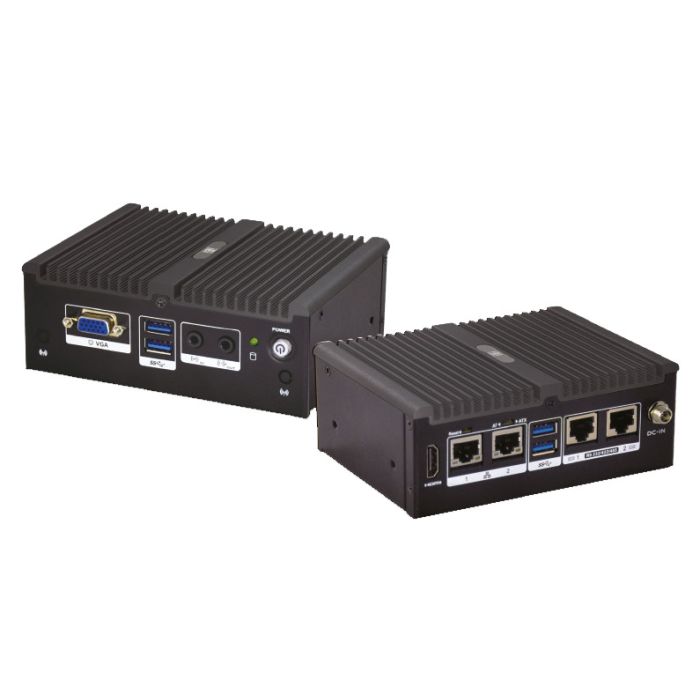

The uIBX-250-BW Embedded System is a Fanless PC based on Intel® Celeron® N3160 processor pre-installed and supports one 204-pin DDR3L 1.35 V SO-DIMM module up to 8 GB (pre-installed 2 GB) with one VGA port and one HDMI for dual display.
This Embedded System supports a 2.5” SATA SSD/HDD. Two RS-232/422/485 serial ports and four USB 3.0 ports ensure simplified connectivity to a variety of external peripheral devices.
KEY FEATURES:
Fanless System with Intel® Celeron® N3160 Processor
CPU:Intel® Celeron® N3160 (up to 2.24 GHz, quad-core, 2 MB cache, TDP=6W) Chipset:SoC System Memory:1 x 204-pin DDR3L 1.35 V SO-DIMM (system max: 8 GB) Pre-installed 2 GB
I/O Interface
I/O Ports
4 x USB 3.0 Ethernet: 2 x RJ-45 PCIe GbE by Intel® I211 controller 2 x RJ-45 RS-232/422/485 1 x HDMI, 1 x VGA 1 x Line-out, 1 x Line-in
Expansion Slots
Expansion Slots
1 x Full-size PCIe Mini card (support mSATA, colay with SATA) *uIBX-250-BW-QGW-R20 has no PCIe mini slot*
System
Cooling method / System Fan
Fanless
Drive Bays
1 x 2.5' SATA 6Gb/s HDD/SSD drive bay
Indicator&Buttons
Buttons
1 x Power button, 1 x AT/ATX switch
Indicators
HDD
Color
Color
Black
Dimensions
Dimensions
136.6 x 102.4 x 52
Weight
Weight
470 g/1.4 kg
Environment
Operating Temperature
-20°C ~ 60°C with air flow
Humidity
10% ~ 95%, non-condensing
Description
The uIBX-250-BW Embedded System is a Fanless PC based on Intel® Celeron® N3160 processor pre-installed and supports one 204-pin DDR3L 1.35 V SO-DIMM module up to 8 GB (pre-installed 2 GB) with one VGA port and one HDMI for dual display.
This Embedded System supports a 2.5” SATA SSD/HDD. Two RS-232/422/485 serial ports and four USB 3.0 ports ensure simplified connectivity to a variety of external peripheral devices.
KEY FEATURES:
Fanless System with Intel® Celeron® N3160 Processor
