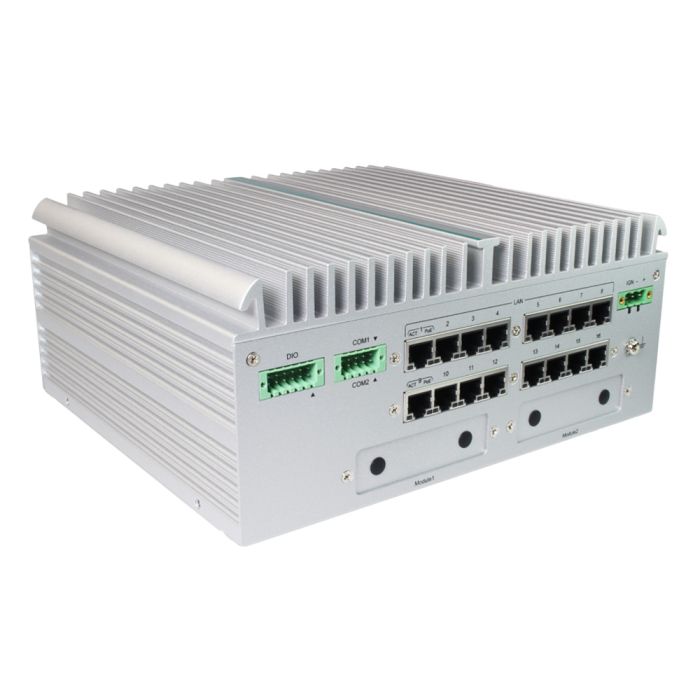

The UST510-52B-FL is an E-Mark certified in-vehicle embedded system that now comes with support for four swappable 2.5-inch SATA drives featuring Intel® RAID 0/1/5/10, ensuring more secure data storage and transmission. This all-in-one in-vehicle box PC can function effectively across a wide temperature range from -40°C to 70°C and endure vibrations of up to 3 Grms.
The UST510-52B-FL offers eight/sixteen PoE ports with M12/RJ-45 connectors and supports remote PoE management software, streamlining the NVR and security surveillance deployment efforts and enhancing monitoring efficiency. Additionally, it incorporates Smart Ignition power control to safeguard the vehicle battery from unstable voltages. With its high level of integration, the UST510-52B-FL is an excellent fit for various in-vehicle applications, such as NVR, onboard security surveillance, vehicle controls, fleet monitoring, and onboard passenger infotainment systems.
Key Features:
CE, FCC and E-Mark certified
LGA1151 9th/8th Gen Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® processor (up to 65W) with Intel C246
Fanless and Wide operating temperatures from -40°C to +70°C
Up to 8/16 GbE PoE port by M12/RJ-45 connector type; none PoE port LAN by RJ45 connector
Supports M.2 Key B and M.2 Key E for wireless communication module
Intelligent solution of Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
Convenient swappable HDD/SSD slots and flexible I/O windows
8RJ 2SATA SKU: 240 x 210.5 x 82.2 mm (9.45" x 8.29" x 3.24”)
8M12 4SATA SKU: 240 x 210.5 x 104.2 mm (9.45" x 8.29" x 4.1")
16RJ 4SATA SKU: 240 x 210.5 x 104.2 mm (9.45" x 8.29" x 4.1")
Weight (net/gross)
8RJ 2SATA SKU: 4.16 kg (9.17 lb)/4.82 kg (10.62 lb)
8M12 4SATA SKU: 4.81 kg (10.604lb)/6.06kg (13.36lb)
16RJ 4SATA SKU: 4.796kg(10.57lb)/6.05kg(13.33lb)
Certifications
CE (Class A), FCC (Class A), E-Mark certified
EOS Support
Windows® 10/11 64-bit, Linux
Software Support
AXView
Mounting
Wall mount
Description
The UST510-52B-FL is an E-Mark certified in-vehicle embedded system that now comes with support for four swappable 2.5-inch SATA drives featuring Intel® RAID 0/1/5/10, ensuring more secure data storage and transmission. This all-in-one in-vehicle box PC can function effectively across a wide temperature range from -40°C to 70°C and endure vibrations of up to 3 Grms.
The UST510-52B-FL offers eight/sixteen PoE ports with M12/RJ-45 connectors and supports remote PoE management software, streamlining the NVR and security surveillance deployment efforts and enhancing monitoring efficiency. Additionally, it incorporates Smart Ignition power control to safeguard the vehicle battery from unstable voltages. With its high level of integration, the UST510-52B-FL is an excellent fit for various in-vehicle applications, such as NVR, onboard security surveillance, vehicle controls, fleet monitoring, and onboard passenger infotainment systems.
Key Features:
CE, FCC and E-Mark certified
LGA1151 9th/8th Gen Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® processor (up to 65W) with Intel C246
Fanless and Wide operating temperatures from -40°C to +70°C
Up to 8/16 GbE PoE port by M12/RJ-45 connector type; none PoE port LAN by RJ45 connector
Supports M.2 Key B and M.2 Key E for wireless communication module
Intelligent solution of Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
Convenient swappable HDD/SSD slots and flexible I/O windows
