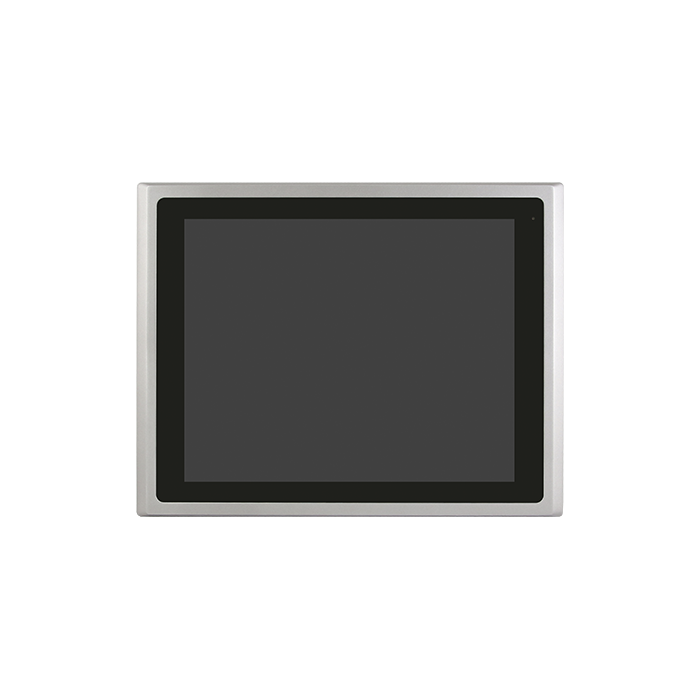

ViPAC-817P/R/G(H) 17” Intel Celeron N2930 Fanless Expandable Panel PC
Aplex ViPAC-817P/R/G(H) 17” Celeron N2930 Fanless Expandable Panel PC IP66 Touchscreen
Key Features:
- 17” TFT LCD Panel PC
- Intel Celeron N2930 Processor
- Modular Concept and Fanless Design
- Support PCT/RTW/AR Glass
- Front Bezel IP66
- Option WiFi/BT/Speaker
- Support 2 x Expansion slot
- DC 9~36V Power input, option AC power input
ViPAC-817R
17" SXGA Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, resistive touch window, 9~36VDC power input with adaptor, Alu.die-casting front bezel.
ViPAC-817P
17" SXGA Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, projected capacitive touch, 9~36VDC power input with adaptor, Alu.die-casting front bezel.
The HMI Controller Industrial Display Monitor, ViPAC-817P/R/G(H), is a versatile 17" Intel Celeron N2930 Fanless Expandable Panel PC designed for industrial applications. It features an onboard Intel Celeron N2930 Processor with a 2M Cache and 1.83GHz clock speed. The system supports up to 8GB of memory with 2 x 204-pin DDR3L SO-DIMM slots. It comes with a 2.5" SATA HDD space for easy-accessible storage and offers a wide-ranging DC power input from 9 to 36V, with the option for AC power input.
The display options include a 17" TFT-LCD with a standard resolution of 1280 x 1024 and a high-brightness option. The touch screen supports both Resistive Touch and Projected Capacitive Touch, with light transmission rates of over 80% and over 90%, respectively. The front bezel is rated IP66, providing protection against dust and water.
The panel PC supports expansion through various slots, including 1 x Full-size Mini PCIe on board, 1 x Half-size Mini PCIe on board, and a SIM slot for optional WiFi/BT/4G connectivity. It offers multiple I/O ports at the rear side, such as USB 3.0 type A ports, RJ45 GbE LAN ports, DB9 RS-232/422/485 ports, VGA, HDMI, Line-out/Mic-in, and more. The system is designed with a modular concept and a fanless design, ensuring reliable and efficient performance.
Key Features:
- 17” TFT LCD Panel PC
- Intel Celeron N2930 Processor
- Modular Concept and Fanless Design
- Support PCT/RTW/AR Glass
- Front Bezel IP66
- Option WiFi/BT/Speaker
- Support 2 x Expansion slot
- DC 9~36V Power input, option AC power input
| Brand | Aplex Technology Inc. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description |
The HMI Controller Industrial Display Monitor, ViPAC-817P/R/G(H), is a versatile 17" Intel Celeron N2930 Fanless Expandable Panel PC designed for industrial applications. It features an onboard Intel Celeron N2930 Processor with a 2M Cache and 1.83GHz clock speed. The system supports up to 8GB of memory with 2 x 204-pin DDR3L SO-DIMM slots. It comes with a 2.5" SATA HDD space for easy-accessible storage and offers a wide-ranging DC power input from 9 to 36V, with the option for AC power input. The display options include a 17" TFT-LCD with a standard resolution of 1280 x 1024 and a high-brightness option. The touch screen supports both Resistive Touch and Projected Capacitive Touch, with light transmission rates of over 80% and over 90%, respectively. The front bezel is rated IP66, providing protection against dust and water. The panel PC supports expansion through various slots, including 1 x Full-size Mini PCIe on board, 1 x Half-size Mini PCIe on board, and a SIM slot for optional WiFi/BT/4G connectivity. It offers multiple I/O ports at the rear side, such as USB 3.0 type A ports, RJ45 GbE LAN ports, DB9 RS-232/422/485 ports, VGA, HDMI, Line-out/Mic-in, and more. The system is designed with a modular concept and a fanless design, ensuring reliable and efficient performance. Key Features:
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
