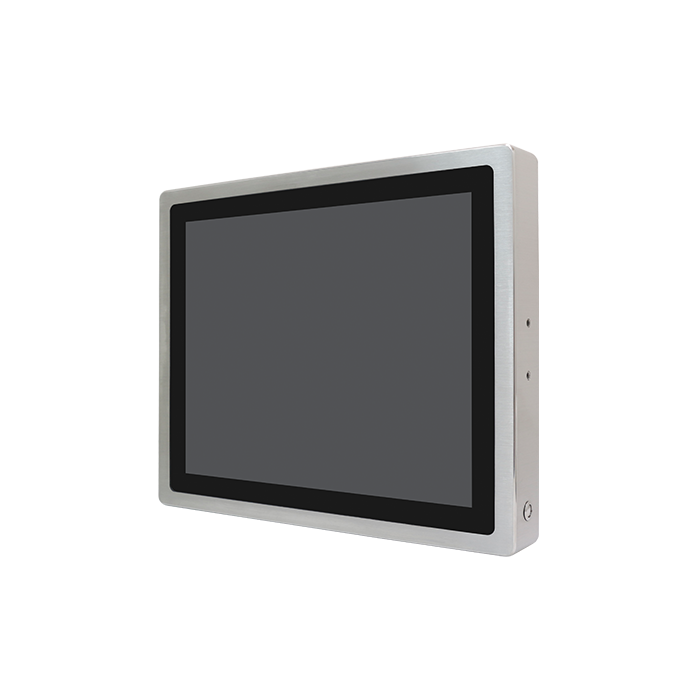

VITAM-915A 15" IP66/IP69K Stainless Panel PC

Details

The ViTAM series includes panel PCs and industrial monitors with all-around capabilities. The Panel PCs can run on either an ARM or an X86 processor and offer four levels of computing speed. The ViTAM series provides the most protected panel solution, going above and beyond the minimal requirements by reaching all IP66 and IP69K certifications with M12 connectors, allowing the machine to endure high-pressure water washing and reducing dust collection. All are suitable for a variety of industrial applications, including food/beverage, chemical, factory automation, and other high-quality environments.

Key Features:

New Generation Stainless Steel Panel PC
6th Gen. Intel Core i3/i5 BGA type Processor
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Support Resistive Touch, Projected Capacitive Touch, and Glass
Touch on/off Button on the Side Edge for Hygienic Cleaning
Support Ergonomic Versatile Mounting: Yoke Mounting/Space-saving VESA 75 x 75 mm Mounting
Space-saving VESA Mounting

More Information

Brand

Aplex Technology Inc.

Specifications

System

CPU:
- Core i5-6300U, 3M Cache, up to 3.00 GHz
- Core i3-6100U, 3M Cache, up to 2.30 GHz
System Chipset: SoC
Memory: 1 x 260-pin SO-DIMM up to 16GB DDR4 2133MHz

IO Port

USB: 1 x M12 8-pin for USB 2.0 with waterproof cover and chain
Serial/Parallel: 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
LAN: 1 x M12 8-pin for LAN with waterproof cover and chain
Others: 1 x Touch on/off button at the side
Power Connector:
- 1 x M12 3-pin for DC power with waterproof cover and chain
- 1 x Power switch on the rear
Option:
- 2 x optional blank M12 connectors with waterproof cover and chain for selecting two from the following options:
- 2 x USB 2.0
- 1 x USB 3.0
- 1 x LAN (POE for option)
- 1 x COM
- 1 x CAN

Storage Space

HDD: 1 x 2.5" SATA3 HDD

Expansion

Expansion slot: 1 x Full-size mini-PCIe socket (PCIe + USB) for WIFI/BT/LTE (optional)
RFID module: RFID module design on the front side (optional)

Display

Standard:
- Display Type: 15” TFT-LCD
- Max. Resolution:1024 x 768
- Max. Colour: 16.7M
- Luminance (cd/m2): 300
- View Angle: 176(H) /176(V)
- Contrast: 2000:1
- Backlight Lifetime: 70,000 hrs

High Brightness Option:
- Display Type: 15” TFT-LCD
- Max. Resolution:1024 x 768
- Max. Colour: 262K / 16.2M (optional)
- Luminance (cd/m2): 1000
- View Angle: 160(H) /160(V)
- Contrast: 800:1
- Backlight Lifetime: 50,000 hrs

Touch Screen

Type:
- Resistive Touch (For AR model)
- Projected Capacitive (For AP model)
- Glass (For AG model)
Interface: USB
Light Transmission (%):
- Resistive Touch: 80%
- Projected Capacitive: 90%

Power

Power Input: DC 9~36V
Power Consumption: ViTAM-915AP:35W

Mechanical

Construction: 304 Stainless steel chassis (default), 316 Stainless steel chassis (optional)
Mounting: VESA mount 75 x 75, Yoke mount for optional
IP Rating: Total IP66/IP69K
Dimensions: 399 x 324 x 53 mm
Net Weight: 7.1 kg

Environmental

Operating Temperature: 0~50°C / -20~60°C (option)
Storage Temperature: -30~70°C
Humidity: 10 to 95% @ 40°C, non-condensing
Certificate: CE/FCC Class A

Operating System Support

Windows Embedded 7, Windows Embedded 8.1, Windows 10 IoT ENT LTSB

Ordering Information

ViTAM-915AP	15" XGA IP66/IP69K stainless steel panel pc, Intel 6th Gen. Core i Processor, 1 x SO-DIMM DDR4 slot, 32G MLC SSD, projected capacitive touch, 9~36V DC power input with Adapter
ViTAM-915AR	15" XGA IP66/IP69K stainless steel panel pc, Intel 6th Gen. Core i Processor, 1 x SO-DIMM DDR4 slot, 32G MLC SSD, 5-wire resistive touch window, 9~36V DC power input with Adapter
ViTAM-915AG	15" XGA IP66/IP69K stainless steel panel pc, Intel 6th Gen. Core i Processor, 1 x SO-DIMM DDR4 slot, 32G MLC SSD, protection glass, 9~36V DC power input with Adapter
ViTAM-915APH	15" XGA IP66/IP69K stainless steel panel pc, Intel 6th Gen. Core i Processor, 1 x SO-DIMM DDR4 slot, 32G MLC SSD, projected capacitive touch, 9~36V DC power input with Adapter, 1000 nits
ViTAM-915ARH	15.6" WXGA IP66/IP69K stainless steel panel pc, Intel 6th Gen. Core i Processor, 1 x SO-DIMM DDR4 slot, 32G MLC SSD, 5-wire resistive touch window, 9~36V DC power input with Adapter, 1000 nits
ViTAM-915AGH	15.6" WXGA IP66/IP69K stainless steel panel pc, Intel 6th Gen. Core i Processor, 1 x SO-DIMM DDR4 slot, 32G MLC SSD, protection glass, 9~36V DC power input with Adapter, 1000 nits

Description

The ViTAM series includes panel PCs and industrial monitors with all-around capabilities. The Panel PCs can run on either an ARM or an X86 processor and offer four levels of computing speed. The ViTAM series provides the most protected panel solution, going above and beyond the minimal requirements by reaching all IP66 and IP69K certifications with M12 connectors, allowing the machine to endure high-pressure water washing and reducing dust collection. All are suitable for a variety of industrial applications, including food/beverage, chemical, factory automation, and other high-quality environments.

Key Features:

New Generation Stainless Steel Panel PC
6th Gen. Intel Core i3/i5 BGA type Processor
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Support Resistive Touch, Projected Capacitive Touch, and Glass
Touch on/off Button on the Side Edge for Hygienic Cleaning
Support Ergonomic Versatile Mounting: Yoke Mounting/Space-saving VESA 75 x 75 mm Mounting
Space-saving VESA Mounting
