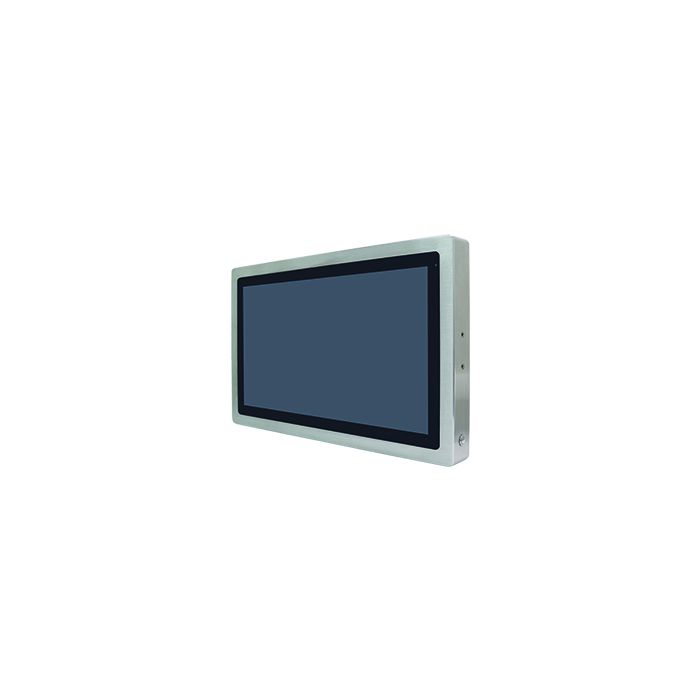

ViTAM-924A 23.8" IP66/IP69K Stainless Steel Panel PC
IP66/IP69K Stainless Steel, high brightness options, wide temp option, PCAP/RESIST/GLASS options
Key Features:
- 23.8" TFT-LCD Projected Capacitive Touch
- 6th Gen Intel Core i3-6100U / Core i5-6300U(Option)
- True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
- IP66/IP69K Rated with M12 Connectors
- Touch on/off Button on the Side Edge for Hygienic Cleaning
23.8" New Gen. IP66/IP69K Stainless Steel Panel PC
Key Features:
- 23.8" TFT-LCD Projected Capacitive Touch
- 6th Gen Intel Core i3-6100U / Core i5-6300U(Option)
- True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
- IP66/IP69K Rated with M12 Connectors
- Touch on/off Button on the Side Edge for Hygienic Cleaning
| Brand | Aplex Technology Inc. |
|---|---|
| Specifications | System
CPUIntel 6th Core i3-6100U / Core i5-6300U(Option) System ChipsetSoC System Memory1 x SO-DIMM DDR4 slot, up to 16GB Power ConsumptionTBD USB1 x M12 8-pin for USB 2.0 with waterproof cap Serial / Parallel1 x M12 8pin for COM 1, RS-232/422/485, Default RS-232, with waterproof cap LAN1 x M12 8pin for LAN with waterproof cap Power1 x M12 3pin DC Power with waterproof cap / 1 x Power Switch on the rear side / 1 x Touch on/off button on the side Storage Space
HDD/SSD1 x 2.5" HDD/SSD / 1 x mSATA slot onboard Expansion
Expansion slot1 x Mini PCIe slot for WIFI/BT (optional) Display
LCD Size23.8" TFT-LCD Max. resolution1920 x 1080 Max. color16.7M Luminance(cd/m²)250 Viewangle(H°/V°)178/178 Contrast3000:1 Backlight lifetime(hrs)30000 Touch Screen(Option)
Touch TypeProjected Capacitive Touch InterfaceUSB Light transmission(%)Over 90% Power
Power inputDC 9~36V Mechanical
ConstructionStainless steel enclosure IP ratingIP66 / IP69K MountingVESA 200 x 100, Yoke mount Dimension(mm)656 x 423 x 53 Net weight(Kgs)TBD Environment
Operating temperature(°C)0~50°C Storage temperature(°C)-30~70°C Storage humidity10 to 90% @ 40°C, non- condensing CertificationCE / FCC CLASS A Operating System SupportWindows 7 64 bitWindows 8 64 bitWindows 10 IoT 64 bit
|
| Description | 23.8" New Gen. IP66/IP69K Stainless Steel Panel PC Key Features:
|
