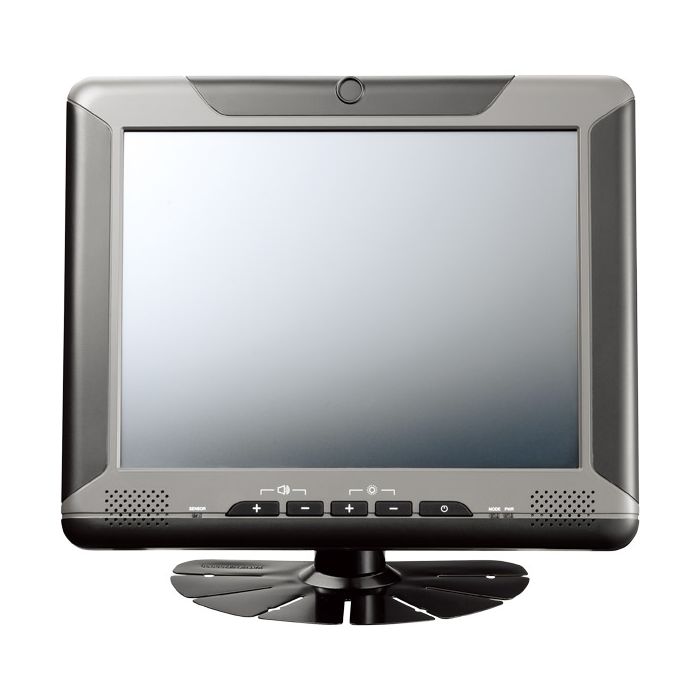

VMD2000 - 8" Vehicle Display with Touch Screen and LVDS Interface

Be the first to review this product

A$0.00

In stock

SKU

VMD2000

8" SVGA Vehicle Mount Display with Touch Screen and LVDS Interface

Details

8" SVGA Vehicle Mount Display with Touch Screen and LVDS Interface

· 8" SVGA TFT LCD monitor

· Automatic/ Manual brightness control

· Remote system power control

· On screen control buttons

· Support USB 2.0 and card reader

· Sunlight readable solution with 800cd/m2 high brightness support

· Front panel compliant with IP54

More Information

Specifications

General	Enclosure: Plastic PC + ABSMounting: Support VESA 75, panel and wall mountingPower Input: 12VDCPower Consumption: 15WIngress Protection: Front panel IP54Dimension: 207mm (W) x 173mm (H) x 36.7mm (D) (8.15" x 6.81" x 1.44")Weight (Net): 0.7Kg, 1.54Lb
LCD Panel	8-inch TFT LCD panel with LED backlight800 x 600 pixels (SVGA)Brightness: 500 cd/m² (typical)Optional high brightness for sunlight-readable with 800cd/m2 After touch screen is 640cd/m2Contrast ratio: 500:1 (typical)
Touch Screen Sensor	4-wire resistant touchAnti-glare coating surfaceTransmission rate: 82 ± 3%
I/O Interface-Front	On screen display buttons x 5 Power on/off Brightness control (+/-) Volume control (+/-)Light sensor2 x LED indicators2 x Built-in speakers (1.2W)
I/O Interface-Lateral	1 x SD/ MMC/ MS card reader1 x USB type A Host1 x Line-out (automatic detection/ switch to external speaker)1 x Mic-in
I/O Interface-Bottom	Remote System Power On/ Off Button1 x Mic-out1 x Line-in1 x LVDS Connector (integrating LVDS, USB x 1 and 12Vdc x 1)
Optional Features	Sunlight-Readable Display with High Brightness LCD (800 cd/m²)Support Panel and wall mount kit
Environment	Operating temperature: -20°C to 60°CStorage temperature: -30°C to 70°CVibration (random): 2.5g@5~500 HzVibration Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity TestShock Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers= 20g Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment= 75g
Standards/ Certifications	CE approvalFCC Class B

Description

8" SVGA Vehicle Mount Display with Touch Screen and LVDS Interface

· 8" SVGA TFT LCD monitor

· Automatic/ Manual brightness control

· Remote system power control

· On screen control buttons

· Support USB 2.0 and card reader

· Sunlight readable solution with 800cd/m2 high brightness support

· Front panel compliant with IP54
