VMD2003 - 8" Vehicle Touch Display - single cable

A$0.00

In stock

SKU

VMD2003

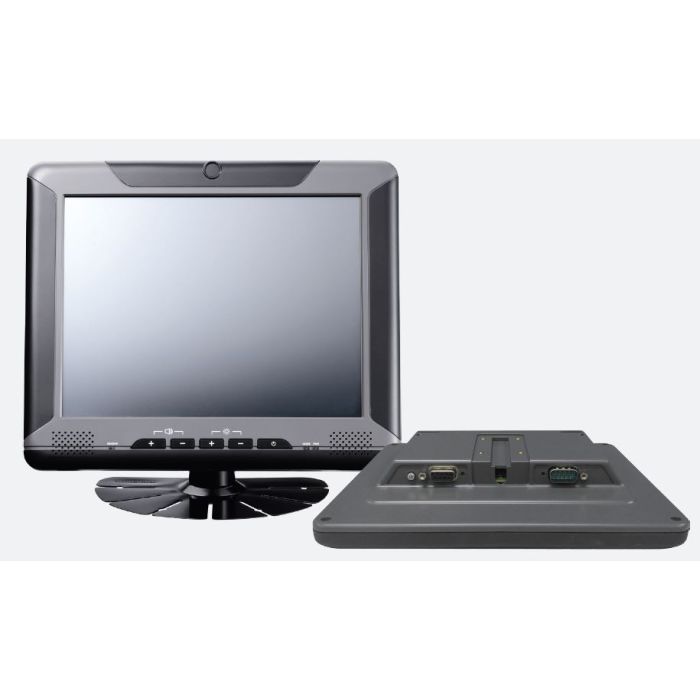

8" SVGA Vehicle Mount Touch Display with Analog Camera and ultraONE+ Technology

8" SVGA Vehicle Mount Touch Display with Analog Camera and ultraONE+ Technology

· 8" SVGA TFT LCD monitor

· ultraONE+ technology

· 10M transmission distance for video input

· Analog camera x 4 supported

· One cable only to connect with the system

· Automatic/Manual brightness control

· Remote power on/off to system

· On screen control buttons

· Display powered from system

· On screen control buttons

· Support USB 2.0 type A

· Sunlight readable solution: 1,000cd/m² (typ.)

· Front panel compliant with IP54

· Line-out and Mic-in

Specifications

General	Enclosure: plastic PC + ABS Mounting: support VESA mount: 75mm x 75mm Power input: 24VDC Power consumption: 14W Ingress protection: front panel IP54 Dimension: 207mm (W) x 173mm (H) x 36.7mm (D) (8.15" x 6.81" x 1.44") Weight (net): around 0.8Kg, 1.76Lb
LCD Panel	8-inch TFT LCD panel with LED backlight 800 x 600 pixels (SVGA) Brightness: 1,000 cd/m² (typical) Contrast ratio: 500: 1 (typical)
Touch Screen Sensor	4-wire resistant touch Anti-glare coating surface
I/O Interface-Front	On screen display buttons x 5 - Power on/off - Brightness control (+/-) - Volume control (+/-) Light sensor 2 x LED indicators 2 x Built-in speakers (1.2W)
I/O Interface-Lateral	1 x USB type A for storage 1 x Line-out (automatic detection/switch to external speaker) 1 x Mic-in
I/O Interface-Bottom	1 x Remote button to power on/off the system 1 x DB9 (male, integrating USB, power, video, audio and DO) to connect with the system 1 x DB9 (female) for analog camera x 4 (CVBS)
Environment	Operating temperature: -20°C to 60°C Storage temperature: -30°C to 70°C Vibration (random): 2.5g@5 ~ 500 Hz Vibration Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4, Ground Vehicle – Highway Truck Storage: MIL-STD-810G, 514.6 Procedure 1, Category 4, Integrity Test Shock Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=40g Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, Ground equipment=75g
Standards/Certifications	CE approval FCC Class B
