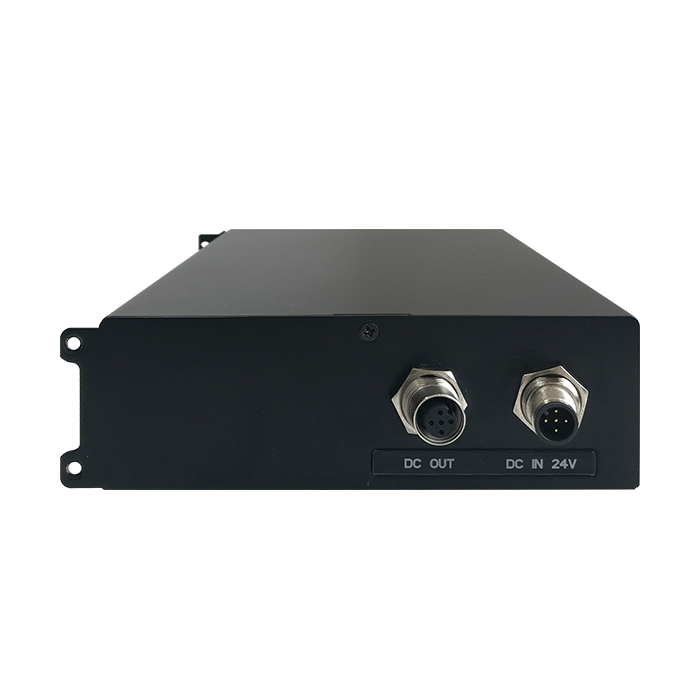

Shop VTK6222-PK External power isolation kit

Details

VTK-6222-PK is an external attachable power isolation kit for nROK 6222 to protect against sudden power surges. Rated power is 150W, constituting two types of models with 2:1 wide but different input ranges 16.8 ~ 31.2VDC and 67.2 ~ 143VDC, suitable for railway systems used standard input voltages such as 24VDC and 110VDC.

More Information

Specifications

Input Voltage	VTK-6222-APK: 24VDCVTK-6222-FPK: 110VDC
Input Connector	M12 (5-pin)
Output Voltage	24VDC
Output Connector	M12 (5-pin)
Rated Power	150W
Dimensions	145 x 218 x 49 (W x D x H) (mm)
Weight	1.7kg
Environment	Operating temperatures - EN 50155, class OT4 -40 ~ 70°C, 85°C for 10 minutesStorage temperatures: -40°C~80°CRelative humidity: 90% (non-condensing)Vibration (random) - 2g@5~500 HzVibration - Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity testShock - Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Standards/Certifications with nROK6222	CEFCC Class AEN 50155:2017 - Ambient temperature EN 50155, class OT4 (-40 ~ 70°C, 85°C for 10 minutes) - Shock and vibration IEC 61373 class B - Interruptions of voltage supply class S1 - Supply change over class C1, C2 - EMC EN 50121-3-2:2016

Description

VTK-6222-PK is an external attachable power isolation kit for nROK 6222 to protect against sudden power surges. Rated power is 150W, constituting two types of models with 2:1 wide but different input ranges 16.8 ~ 31.2VDC and 67.2 ~ 143VDC, suitable for railway systems used standard input voltages such as 24VDC and 110VDC.

Reviews

Write Your Own Review

Downloads

Data sheet

VTK6222-PK, External power isolation kit
