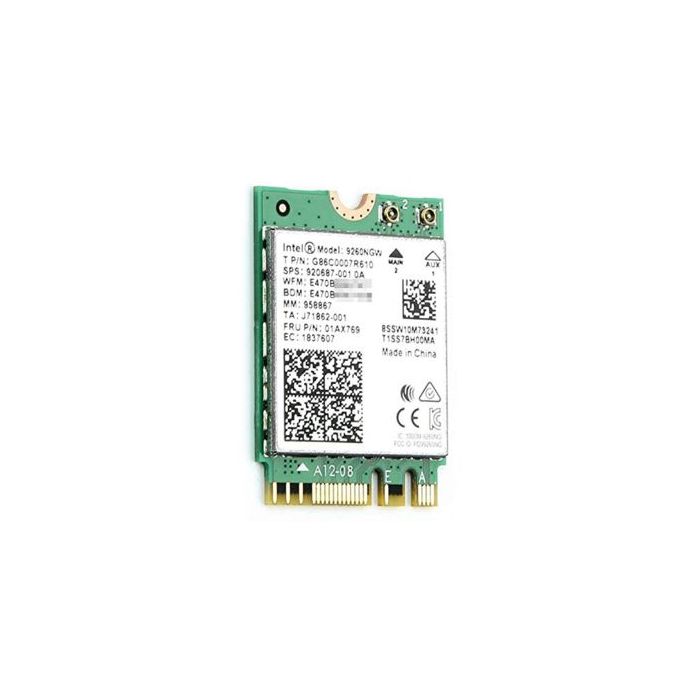

The Intel Wireless-AC 9260 adapter supports Bluetooth 5.1 and 2x2 802.11ac Wi-Fi, featuring wave 2 capabilities including 160MHz channels, up to 1.73Gbps throughput, and downlink MU-MIMO. When compared to traditional 802.11ac devices, these new capabilities offer a substantial improvement in user speeds in dense installations, allowing for faster downloads and longer battery life. The Intel Wireless-AC 9260, when combined with Intel Core processors and Intel wireless technologies, can deliver Gigabit download speeds and drastically improve your connected experience.
(H x W x D) M.2 2230: 22mm x 30mm x 2.4mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)]
M.2 1216: 12mm x 16mm x 1.67 (+-0.08)mm
Weight
M.2 2230: 2.9 +/– 0.3 g
M.2 1216: 0.61 +/– 0.1 g
Antenna Diversity: Supported
Radio ON/OFF Control: Supported
Connector Interface: M.2: PCIe*, USB
Operating Temperature (Adapter Shield): 0°C to +80°C
Humidity Non-Operating: 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)
Operating Systems: Microsoft Windows 10, Linux (limited feature support), Chrome OS
Wi-Fi Alliance: Wi-Fi CERTIFIED a/b/g/n/ac with wave 2 features, WMM, WMM-PS, WPA2, WPA3, WPS2, Protected Management Frames, Wi-Fi Miracast as Source, and Wi-Fi Direct (For Microsoft Windows only)
IEEE WLAN Standard: IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r, 802.11k, 802.11v pending OS support; Fine Timing Measurement based on 802.11REVmc
Roaming: Supports seamless roaming between access points
Encryption: 64-bit and 128-bit WEP, TKIP, 128-bit AES-CCMP, 128-bit and 256-bit AES-GCMP
Wi-Fi Direct Encryption and Authentication: WPA2-PSK, AES-CCMP
Compliance:
Regulatory: For a list of country approvals, please contact your local Intel representatives.
US Government: FIPS, FISMA
Product Safety: UL, C-UL, CB (IEC 60950-1)
Description
The Intel Wireless-AC 9260 adapter supports Bluetooth 5.1 and 2x2 802.11ac Wi-Fi, featuring wave 2 capabilities including 160MHz channels, up to 1.73Gbps throughput, and downlink MU-MIMO. When compared to traditional 802.11ac devices, these new capabilities offer a substantial improvement in user speeds in dense installations, allowing for faster downloads and longer battery life. The Intel Wireless-AC 9260, when combined with Intel Core processors and Intel wireless technologies, can deliver Gigabit download speeds and drastically improve your connected experience.
