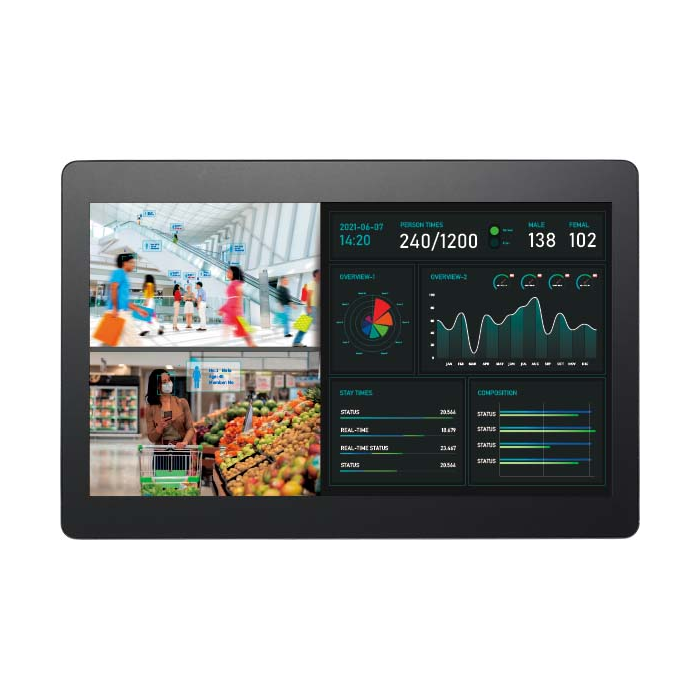

Shop XPPC16-200 15.6� TFT FHD Panel PC

Details

The 15.6" fanless XPPC 16-200, which includes an industrial motherboard suited for a variety of industrial applications, is powered by an Intel Tiger Lake-UP3 Core SoC. This panel PC's touch screen LED backlight LCD panel offers a 1920 x 1080 (FHD) resolution and a brightness of 450 nits. The front panel's flush design, which fulfils IP65 standards, makes it perfect for industrial applications. The XPPC 16-200 has a slim and lightweight design. To fit the user's requirements, it has a variety of mounting possibilities. A hotel's self-check-in system, a department store's welcome board, and billboards are just a few examples of where the PC might be used.

Key Features:

15.6” TFT FHD 16:9 panel
10 Points P-Cap multi-touch with a slim bezel design
IP65 protection on the front
VESA/Panel/Openframe Mount
11th Generation Intel® Tiger Lake-UP3 Core™ processor SoC
1 x 260-pin DDR4 SO-DIMM up to 32G
Onboard M.2 2280 Key M with PCIe x4 signal for storage module
Onboard M.2 2230 Key E for optional Wi-Fi modules
Support power input 12 VDC

More Information

Brand

Nexcom

Specifications

Panel	LCD size: Innolux G-series 15.6”, 16:9Resolution: Full HD 1920 x 1080 Luminance - LCD panel: 450cd/m2 - XPPC PCAP touch: 405cd/m2 Contrast ratio: 700LCD color: 16.7M Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)
Touch Screen	10 Points P-Cap (projected capacitive touch)Optical bonding Glass surface treatment: AS (Anti-Smudge Coating for easy cleaning)
System	XPPC 16-200-i3 - Onboard 11th Generation Intel® Core™ i3-1115G4E processor, Dual-Core, 2.2 GHz base frequency, 6M Cache (formerly Tiger Lake-UP3) - Intel® UHD Graphics 630 on i3 processor XPPC 16-200-i5 (by request) - Onboard 11th Generation Intel® Core™ i5-1145G7E processor, Dual-Core, 1.5 GHz base frequency, 8M Cache - Intel® Iris® X^e Graphics on i5 processor
Main Memory	1 x 260-pin DDR4 SO-DIMM, supports non-ECC, un-buffered memory up to 32G
Storage Device	1 x M.2 2280 Key M SSD, support PCIe x4
Expansion	1 x M.2 2230 Key E, support optional Wi-Fi modules
Rear I/O	1 x RS232/422/485 1 x 12V DC Jack 2 x RJ45 Intel® Gigabit LAN port 1 x DP++ 1 x HDMI 2.0 4 x USB 3.0 1 x Line-out LED for power on/off Power switch
Front I/O	2 x Antenna hole
Mechanical & Environment	Color/material: black silver/metal sheet Support - VESA mount 100mm x 100mm - Panel mount - Open frame
Environment	Vibration - IEC 68 2-64 - 2Grms @ sine, 5~500Hz, 1hr/axis - 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)Shock - IEC 68 2-27 - 50g peak acceleration (11 msec. duration)Temperature - Operating temperature: 0°C~50°C - Storage temperature: -20°C~60°C Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%
Dimensions	System: 382.2mm x 251.4mm x 51.7mm System weight: 3.0kgPackage: 476mm x 355mm x 206mm Package weight: 4.7kg
Power Supply	1 x External 96W AC/DC power adapter with lock (power adapter is included in accessory) Input: 100VAC to 240VAC Output: DC+12VDC
Certifications	CE (EN55035 + EN55032) FCC Class A (EMI Part 15B) LVD (EN62368-1)
OS Support Lists	Win10 64-bit Linux

Description

The 15.6" fanless XPPC 16-200, which includes an industrial motherboard suited for a variety of industrial applications, is powered by an Intel Tiger Lake-UP3 Core SoC. This panel PC's touch screen LED backlight LCD panel offers a 1920 x 1080 (FHD) resolution and a brightness of 450 nits. The front panel's flush design, which fulfils IP65 standards, makes it perfect for industrial applications. The XPPC 16-200 has a slim and lightweight design. To fit the user's requirements, it has a variety of mounting possibilities. A hotel's self-check-in system, a department store's welcome board, and billboards are just a few examples of where the PC might be used.

Key Features:

15.6” TFT FHD 16:9 panel
10 Points P-Cap multi-touch with a slim bezel design
IP65 protection on the front
VESA/Panel/Openframe Mount
11th Generation Intel® Tiger Lake-UP3 Core™ processor SoC
1 x 260-pin DDR4 SO-DIMM up to 32G
Onboard M.2 2280 Key M with PCIe x4 signal for storage module
Onboard M.2 2230 Key E for optional Wi-Fi modules
Support power input 12 VDC
