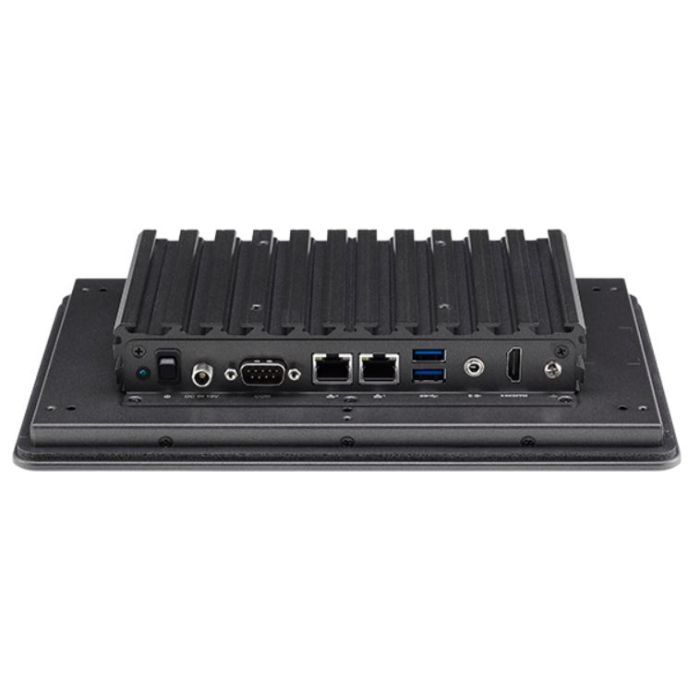

The 10.1" fanless touchscreen computer XPPC 10-100-1 with an industrial motherboard is designed for a wide range of industrial applications. The XPPC 10-100-1 has a touch screen LED backlight LCD panel with a resolution of 1280 x 800 (WXGA) and a brightness of 400 nits. The front panel's flush design and compliance with the IP65 standard by panel mount make it ideal for industrial applications. With a slim design and weight optimisation, the XPPC10-100-1 is powered by an Intel Celeron processor and supports DDR3L up to 8GB. XPPC 10-100-1 supports multiple mounting options based on application. XPPC 10-100-1 can be used in a variety of settings, including restaurants, convenience stores, and self-ordering systems.
Key Features:
10.1” TFT WXGA 16:10 panel
10-point PCAP multi-touch with a slim bezel design
IP65 protection on the front
Support: VESA/panel/openframe mount
Intel Celeron processor J3455
1 x DDR3L up to 8GB, M.2 2242 Key M for storage device
Temperature - Operating temperature with 0.7 m/s air flow: 0°C~50°C - Storage temperature: -20°C~60°C
Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%
Dimensions
System: 260.3mm x 178.3mm x 44.65mm
System weight: 2 kg
Package: 335mm x 302mm x 160mm
Package weight: 3 kg
Power Supply
1 x 45W AC/DC lockable adapter included in accessory
Input: 100VAC to 240VAC
Output: DC 19VDC
Certifications
CE (EN55035 + EN55032)
FCC Class A (EMI part 15B)
LVD (EN62368-1)
OS Support Lists
Windows 10 64-bit
Linux
Description
The 10.1" fanless touchscreen computer XPPC 10-100-1 with an industrial motherboard is designed for a wide range of industrial applications. The XPPC 10-100-1 has a touch screen LED backlight LCD panel with a resolution of 1280 x 800 (WXGA) and a brightness of 400 nits. The front panel's flush design and compliance with the IP65 standard by panel mount make it ideal for industrial applications. With a slim design and weight optimisation, the XPPC10-100-1 is powered by an Intel Celeron processor and supports DDR3L up to 8GB. XPPC 10-100-1 supports multiple mounting options based on application. XPPC 10-100-1 can be used in a variety of settings, including restaurants, convenience stores, and self-ordering systems.
Key Features:
10.1” TFT WXGA 16:10 panel
10-point PCAP multi-touch with a slim bezel design
IP65 protection on the front
Support: VESA/panel/openframe mount
Intel Celeron processor J3455
1 x DDR3L up to 8GB, M.2 2242 Key M for storage device
