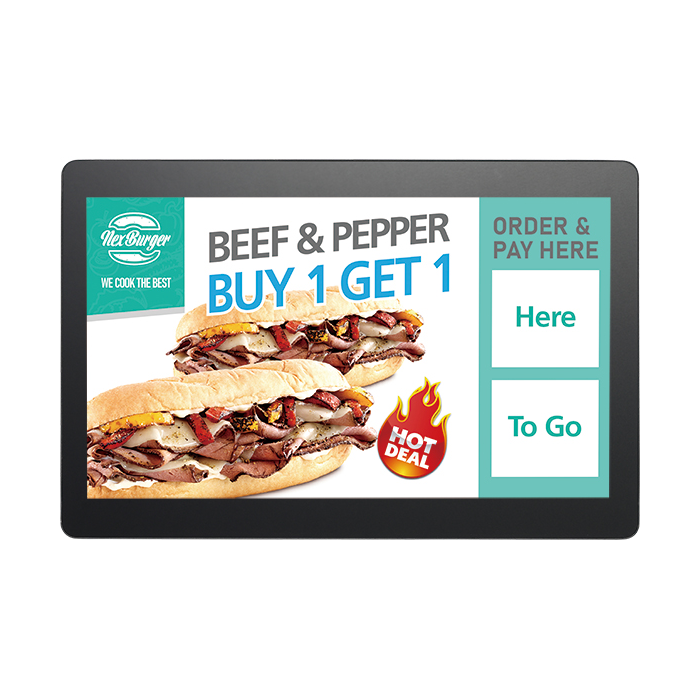

The 15.6" fanless display PC The XPPC 16-101, which includes an industrial motherboard, is designed for a wide range of industrial applications. The XPPC 16-101 has a touch screen LED backlight LCD panel with a 1920 x 1080 (FHD) resolution and a brightness of 450 nits. The front panel's flush design and compliance with the IP65 standard by panel mount make it ideal for industrial applications. The Intel Celeron processor powers the XPPC 16-101, which supports DDR3L memory up to 8GB. The XPPC 16-101 has a slim design and is lightweight. The XPPC 16-101 supports multiple mounting options based on application. XPPC 16-101 can be used in a variety of situations. For instance, a hotel self-check-in system, a department store, a welcome board, and advertising.
Key Features:
15.6” TFT FHD 16:9 Panel
10 points P-Cap multi-touch with slim bezel design
IP65 protection on the front
Support: VESA/panel/openframe mount
Intel Celeron processor J3455, 1.50GHz, 2M cache
1 x DDR3L up to 8GB, M.2 2242 Key M for storage device
Temperature - Operating temperature: 0°C~50°C - Storage temperature: -20°C~60°C
Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%
Dimensions
System: 382.2mm x 251.4mm x 51.79mm
System weight: 3.0 kg
Package: 476mm x 355mm x 206mm
Package weight: 4.7kg
Power Supply
1 x External 90W AC/DC power adapter with screw locking DC Jack (power adapter is included in accessory)
Input: 100VAC to 240VAC
Output: DC+19VDC
Certifications
CE (EN55035 + EN55032)
FCC Class A (EMI part 15B)
LVD (EN62368-1)
OS Support Lists
Win10 64-bit
Linux
