VTC6220-BK - Intel Atom x7-E3950, Dual 2.5" SSD

Be the first to review this product

A$0.00

In stock

SKU

VTC6220-BK

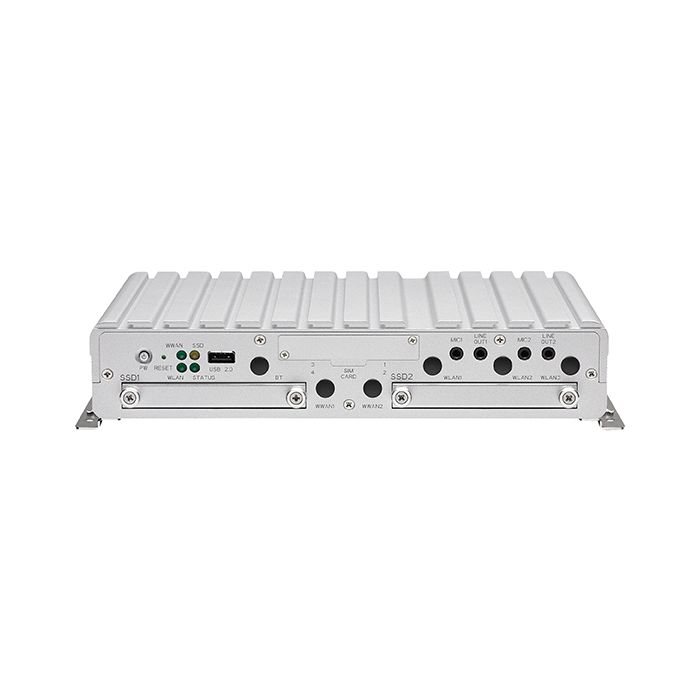

Intel Atom® x7- E3950 Fanless In-Vehicle Computer

Details

Intel Atom® x7- E3950 Fanless In-Vehicle Computer

· Intel Atom® x7-E3950 processor quad core 1.6GHz

· 3 x LAN support (2 x POE by request)

· Dual externally accessible 2.5” SSD tray

· Inside backup battery (option)

· VGA/HDMI/(ultraONE+ is supported to 10 meter or LVDS, by request)

· 4 x SIM card support (default type is 3 x external & 1 x internal)

· Built-in u-blox M8N GPS module, optional dead reckoning support

· Built-in CAN 2.0B optional SAE J1708/SAE J1939 module

· Dual Mic-in and Line-out for various application

· Certified by CE/FCC/E13 mark

More Information

brand

Nexcom

Specifications

CPU	Intel Atom® processor Apollo Lake E3950, 1.6GHz
Memory	1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/1333MHz up to 8GB (default 4GB)
Storage	2 x Removable 2.5” SSD tray
Expansion	1 x Full size mini-PCIe socket (USB 2.0) 1 x M.2 slot B (USB 3.0 + USB 2.0) 2 x Full size mini-PCIe socket (USB 2.0 + PCIe)
Function	1 x U-blox NEO-M8N module (support GPS/Glonass/QZSS/Galileo/ Beidou) Built-in G-sensor TPM 2.0
I/O Interface-Front	1 x Power button with LED 4 x LED for WWAN, WLAN, SSD, GPS 1 x Reset button 1 x USB 2.0 type A connector 4 x SIM card support (default type is 3 x external & 1 x internal) 2 x Removable 2.5” SSD tray 2 x Mic-in and 2 x Line-out 6 x SMA type antenna hole for WWAN (2)/WLAN (3)/BT (1)
Interface-Rear	1 x DB15 VGA 1 x HDMI port 1 x LVDS/ultaONE+ (by request) 1 x Phoenix connector for 9~36VDC power/GND/ignition input 1 x 4 x 2 connect for 12V/2A DC output, RS-232, power button, reset button (MDI1) and sleeping mode (MDI2) 2 x USB 3.0 type A connector 3 x RJ45 10/100/1000 fast ethernet with LED (2 x POE by request) 2 x DB-9 (male) for fully RS-232 1 x DB-9 (male) for multi-port - 2 x MDO - 1 x Speed (for DR) - 1 x Direction (for DR) - 1 x SAE J1708 or J1939 (opional VIOB-CAN-05 or CAN-06 module) 1 x 16-pin terminal block - 1 x CAN Bus 2.0B (on board) - 1 x RS422/485 - 4 x DI, 4 x DO 1 x Antenna hole for GPS
Power Management	Selectable boot-up & shut-down voltage for low power protection by software Setting 8-level power on/off delay time by software Status of ignition and low voltage can be detected by software Support S3/S4 suspend mode
Operating System	Windows 10 YOCTO (by request)
Dimensions	259mm (W) x 196mm (D) x 50mm (H) (10.20” x 7.72” x 1.97”) Weight: 1.7kg
Environment	Temperature - Operating temperatures: -40°C~70°C (w/ industrial SSD) with air flow - Storage temperatures: -40°C~85°C - Damp heat test per EN60068-2-30 Humidity - IEC60068-2-3, damp heat steady state test, 40C, 95%, 48Hrs Vibration - IEC 60068-2-64, 2G for SSD - Operating: MIL-STD-810G, 514.6C procedure 1, category 4 - Storage: MIL-STD-810G, 514.6E procedure 1, category 24 Shock (SSD) - MIL-STD-810G, 516.6 procedure I, trucks and semi-trailers=40g - Crash hazard: procedure V, ground equipment=75g
Certifications	CE FCC Class A E13 Mark
